Connect to a Playground Kubernetes Cluster

Motivation

Playground Kubernetes clusters run inside remote VMs, so kubectl on your local machine can't reach the API server directly. This recipe shows how to forward the Kubernetes API port and patch the kubeconfig so that your local kubectl talks to the cluster as if it were local.

The labctl kube-proxy command helps you connect to a playground Kubernetes cluster from your local machine using kubectl or any other Kubernetes client that understands the kubeconfig format.

Prerequisites

labctl installed and authenticated
kubectl installed locally
(optional) sed or yq for editing the kubeconfig

Quick Start

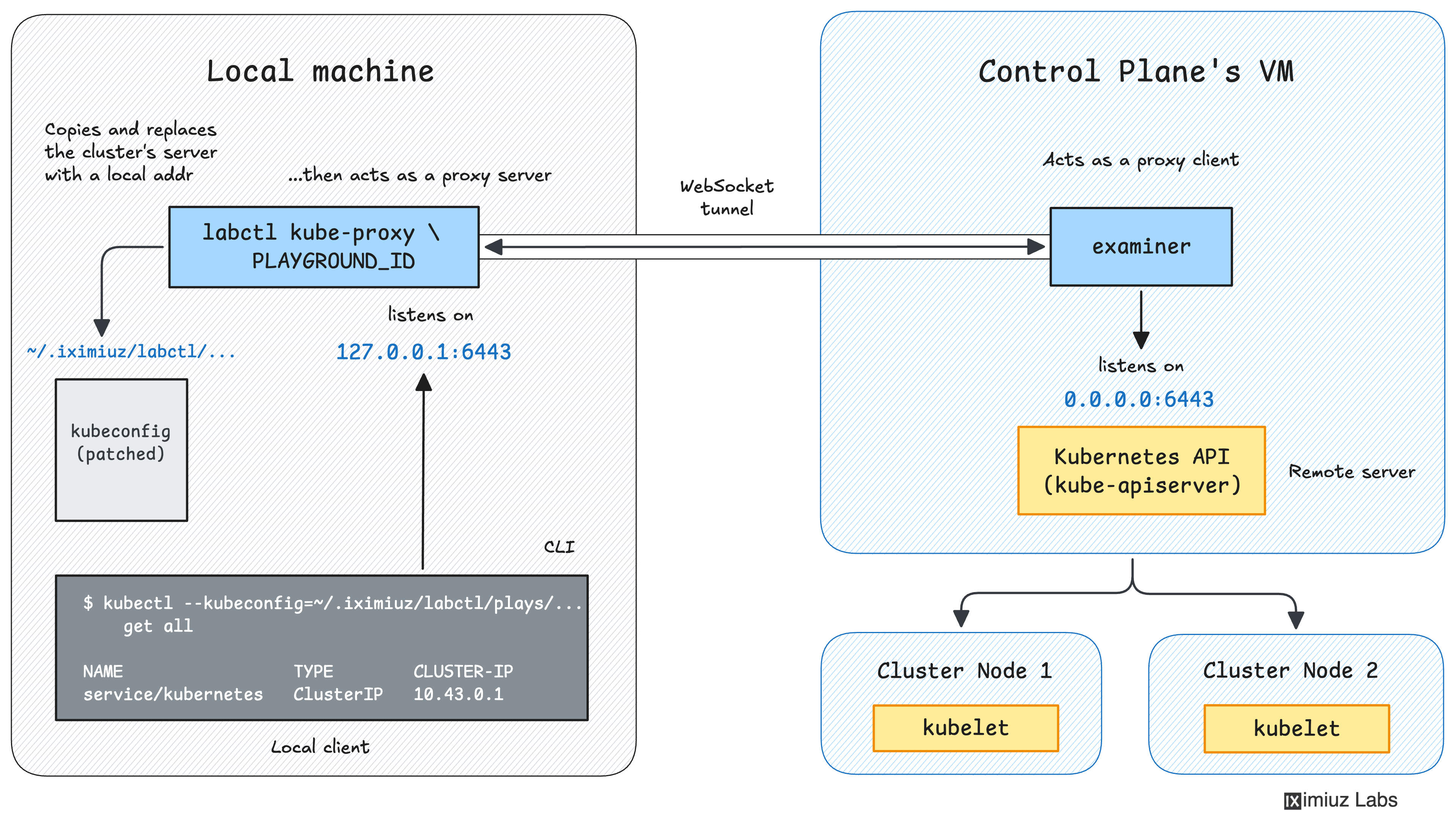

The labctl kube-proxy command helps you connect to a playground Kubernetes cluster from your local machine by copying the kubeconfig from the control plane, patching the server address in it to 127.0.0.1, starting the local port forwarding, and printing the exact kubectl command you need to connect to the remote cluster:

PLAY_ID=$(labctl playground start k3s)

labctl kube-proxy $PLAY_ID

Downloading kubeconfig from "cplane-01"...
Patching kubeconfig server address to 127.0.0.1:6443...
Forwarding 127.0.0.1:6443 (local) -> :6443 (remote)
Waiting for the Kubernetes API to become accessible...

Kubeconfig saved to:
  /home/devel/.iximiuz/labctl/plays/69ea00ed4dea8a745f853db2-cplane-01-laborant/kubeconfig

To access the cluster:

  export KUBECONFIG=/home/devel/.iximiuz/labctl/plays/69ea00ed4dea8a745f853db2-cplane-01-laborant/kubeconfig
  kubectl get all

Or using an explicit flag:

  kubectl --kubeconfig=/home/devel/.iximiuz/labctl/plays/69ea00ed4dea8a745f853db2-cplane-01-laborant/kubeconfig get all

Keeping port forwarding running. Press Ctrl+C to stop.

If you need more control over the process, want to use a different kubeconfig path, or simply want to understand what happens under the hood, read on.

Manual Steps

1. Start a Kubernetes playground:

PLAY_ID=$(labctl playground start k3s)

Substitute k3s with k8s-omni or the name of your own custom Kubernetes playground.

2. Forward the Kubernetes API port to localhost:

labctl port-forward -L 6443:6443 -m cplane-01 $PLAY_ID

Keep this command running - it holds open the tunnel.

cplane-01 is the control plane machine name in the standard k3s and k8s-omni playgrounds. If you're using a custom playground, substitute it with the actual name of your control plane VM.

3. In a new terminal, copy the remote kubeconfig:

labctl cp $PLAY_ID:~/.kube/config ./config-$PLAY_ID

If your playground stores the kubeconfig at a different path, adjust the source accordingly (e.g., /etc/kubernetes/admin.conf for kubeadm-based clusters).

4. Replace the API server address in the kubeconfig:

The copied kubeconfig points to the cluster's internal IP, which isn't reachable from your machine. Rewrite it to 127.0.0.1 so traffic goes through the forwarded port:

Using sed:

sed -i 's|https://[^:]*:6443|https://127.0.0.1:6443|g' ./config-$PLAY_ID

Or using yq:

yq e '.clusters[].cluster.server = "https://127.0.0.1:6443"' -i ./config-$PLAY_ID

5. Point kubectl at the patched config and verify access:

export KUBECONFIG=$(pwd)/config-$PLAY_ID

kubectl get all

You should see the cluster's resources listed, confirming that your local kubectl is talking to the playground Kubernetes API through the forwarded port.
