Integration via Web Services (SOAP)

What is SOAP?

SOAP (Simple Object Access Protocol) is an XML-based messaging protocol for calling remote services over HTTP. Every request and response is wrapped in a SOAP envelope — an XML document with a defined structure. The service contract is described in a WSDL (Web Services Description Language) document that lists all available operations, their input/output parameters, and data types.

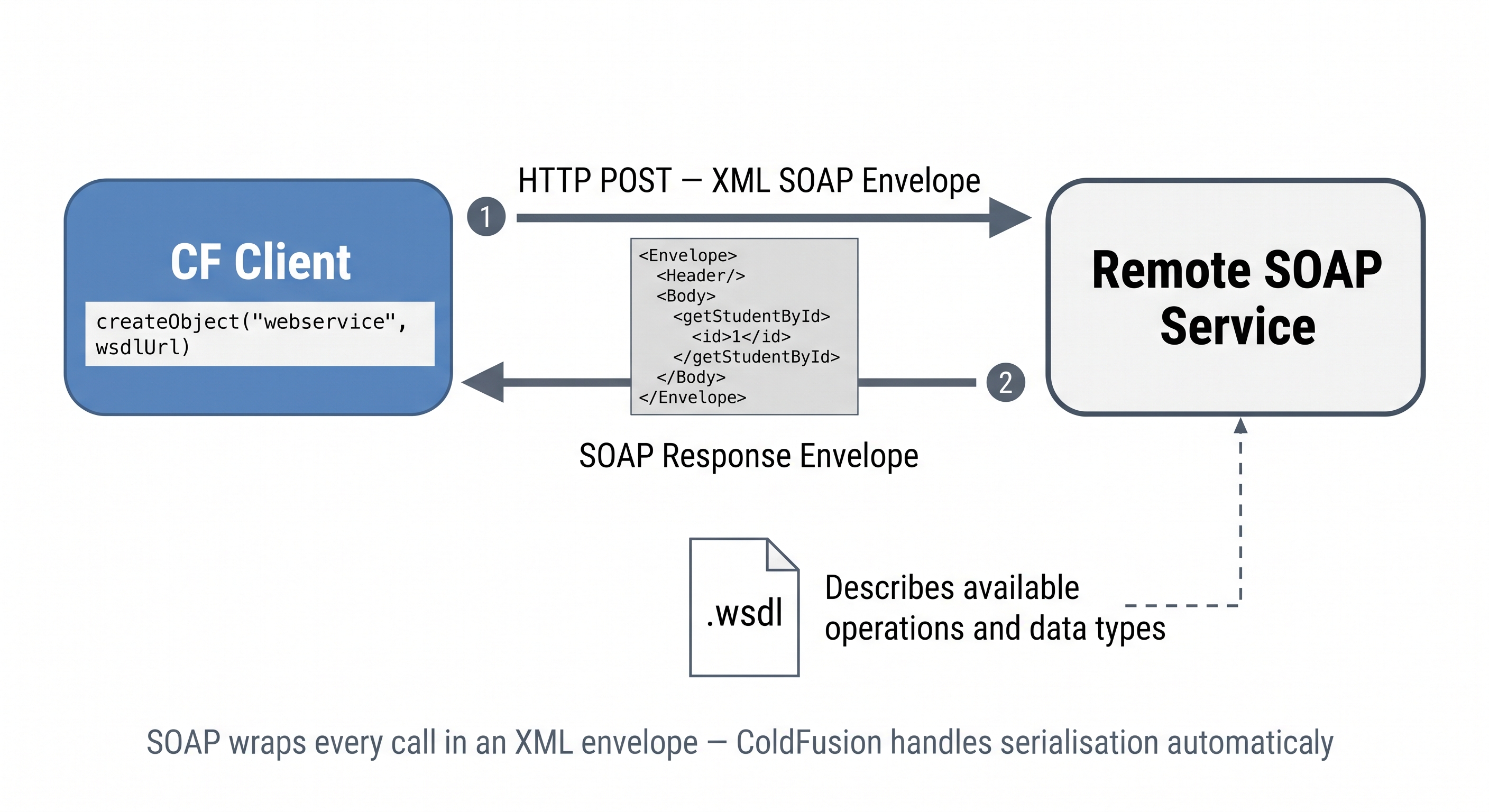

SOAP wraps every call in an XML envelope — ColdFusion handles the serialisation automatically via createObject("webservice", wsdlUrl).

While REST APIs dominate new development, SOAP is still widely used in enterprise systems — banking, government, ERP platforms, and healthcare systems commonly expose SOAP endpoints. ColdFusion has had first-class SOAP support since version 6.

SOAP vs REST — what actually differs and when to use each

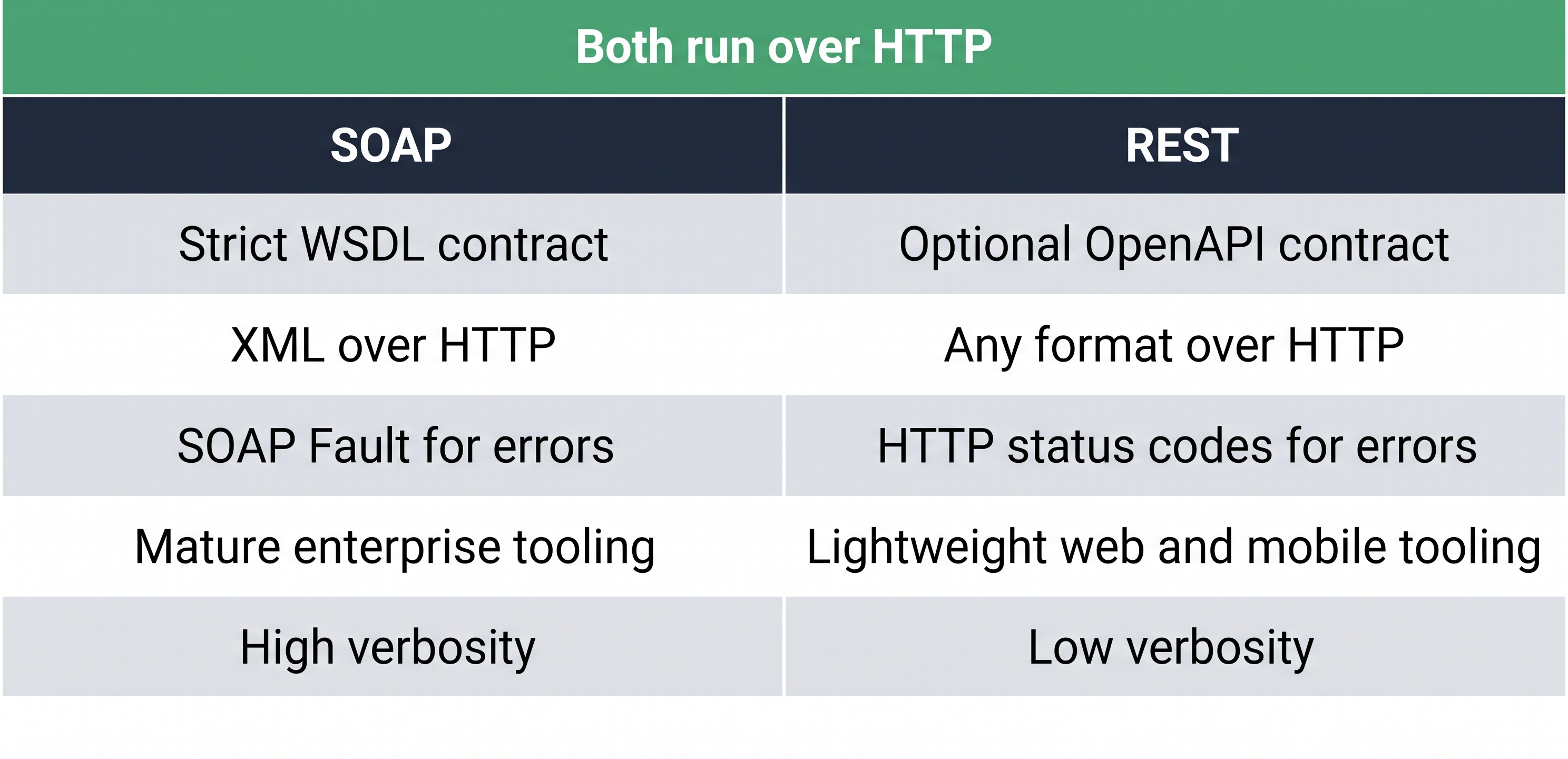

SOAP and REST both use HTTP — the key differences are contract strictness, payload format, and ecosystem.

Aspect	SOAP	REST
Protocol	XML over HTTP/HTTPS	Any format (usually JSON) over HTTP
Contract	WSDL — strict, machine-readable	OpenAPI/Swagger — optional
Error handling	SOAP Fault XML envelope	HTTP status codes (4xx, 5xx)
Tooling	Mature enterprise IDEs, WS-Security	Lightweight, any HTTP client
Verbosity	High — XML wrapping adds overhead	Low — JSON is compact
When to use	Legacy enterprise integration, banking, healthcare	New APIs, mobile, web, public APIs

The practical rule: if you are integrating with a system built before 2010, expect SOAP. If you are building something new, use REST. ColdFusion handles both equally well.

What about gRPC? ColdFusion has no native gRPC support. gRPC uses HTTP/2 and binary Protocol Buffers — outside CF's built-in web service layer. If you need to call a gRPC service from ColdFusion, put a REST gateway in front of it (gRPC-Gateway, Envoy) and call that via cfhttp. For this course, gRPC is out of scope.

How ColdFusion consumes a SOAP service

ColdFusion reads the WSDL and generates a proxy object automatically. Every method call on the proxy is serialised into a SOAP envelope and dispatched over HTTP — you never write XML manually:

What does "serialised" mean? Think of it like packing a suitcase. Your ColdFusion variables — strings, numbers, structs — exist in memory in a form only your server understands. Serialising means converting them into a standardised text format (XML, in SOAP's case) that any other system on any platform can read and unpack. The remote server receives that XML, unpacks it back into its own variables, runs the function, then serialises its response back to you the same way. You write normal ColdFusion; the serialisation/deserialisation happens invisibly in between.

<cfscript>
  // Create proxy from WSDL URL — CF parses the contract automatically
  ws = createObject("webservice", "http://example.com/StudentService?wsdl");

  // Call a remote method — CF handles XML serialisation
  result = ws.getStudentById(1);

  writeOutput("Name: " & result.name);
</cfscript>

The <cfinvoke> tag is the tag-syntax alternative:

<cfinvoke
  webservice = "http://example.com/StudentService?wsdl"
  method     = "getAll"
  returnvariable = "students">
</cfinvoke>

<cfdump var="#students#">

<cfscript>
  // refreshWSDL=true forces re-download and regeneration of the proxy
  ws = createObject("webservice", "http://example.com/service?wsdl", {refreshWSDL: true});
</cfscript>

Exposing a CFC as a SOAP web service

Any CFC function marked access="remote" is automatically exposed as a SOAP web service by ColdFusion. No configuration required — ColdFusion generates the WSDL automatically:

// TicketService.cfc
component displayname="TicketService" style="document" {

  remote struct function getTicketById(required numeric id) output="false" {
    var q = queryExecute(
      "SELECT id, title, status, priority FROM hd_tickets WHERE id = :id",
      { id: { value: arguments.id, cfsqltype: "cf_sql_integer" } },
      { datasource: "training_db" }
    );
    if (q.recordCount == 0) { return { error: "not found" }; }
    return {
      id       : q.id,
      title    : q.title,
      status   : q.status,
      priority : q.priority
    };
  }

}

ColdFusion auto-generates the WSDL — append ?wsdl to the CFC URL:

http://localhost:8500/TicketService.cfc?wsdl

And consume it from any SOAP client — including another ColdFusion application:

<cfscript>
  ws     = createObject("webservice", "http://localhost:8500/TicketService.cfc?wsdl");
  ticket = ws.getTicketById(1);
  writeOutput("Ticket: " & ticket.title & " — " & ticket.status);
</cfscript>

<?xml version="1.0" encoding="UTF-8"?>
<wsdl:definitions
  name="TicketService"
  targetNamespace="http://localhost:8500/TicketService.cfc"
  xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"
  xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
  xmlns:xsd="http://www.w3.org/2001/XMLSchema">

  <!-- 1. Types — data structure definitions -->
  <wsdl:types>
    <xsd:schema>
      <xsd:element name="getTicketByIdRequest">
        <xsd:complexType>
          <xsd:sequence>
            <xsd:element name="id" type="xsd:int"/>
          </xsd:sequence>
        </xsd:complexType>
      </xsd:element>
    </xsd:schema>
  </wsdl:types>

  <!-- 2. Messages — named parameter sets -->
  <wsdl:message name="getTicketByIdRequest">
    <wsdl:part name="parameters" element="tns:getTicketByIdRequest"/>
  </wsdl:message>
  <wsdl:message name="getTicketByIdResponse">
    <wsdl:part name="return" type="xsd:anyType"/>
  </wsdl:message>

  <!-- 3. Port Type — the interface (list of operations) -->
  <wsdl:portType name="TicketServicePortType">
    <wsdl:operation name="getTicketById">
      <wsdl:input  message="tns:getTicketByIdRequest"/>
      <wsdl:output message="tns:getTicketByIdResponse"/>
    </wsdl:operation>
  </wsdl:portType>

  <!-- 4. Binding — SOAP transport details -->
  <wsdl:binding name="TicketServiceBinding" type="tns:TicketServicePortType">
    <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
    <wsdl:operation name="getTicketById">
      <soap:operation soapAction="getTicketById"/>
    </wsdl:operation>
  </wsdl:binding>

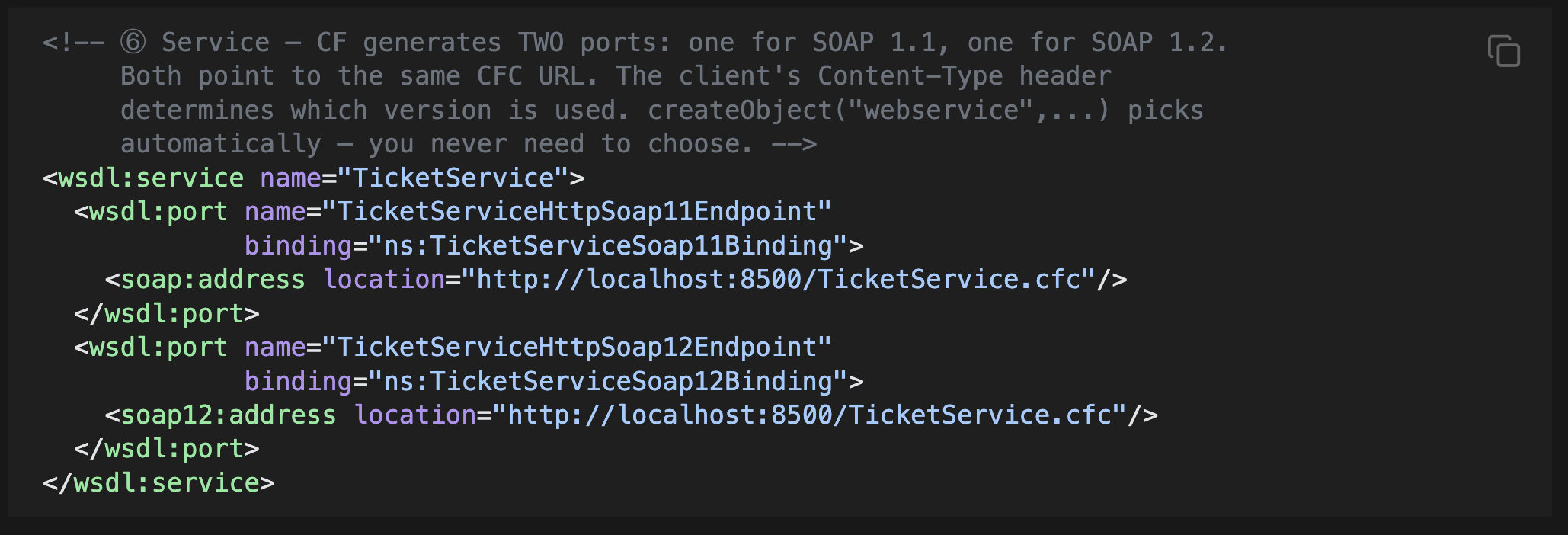

  <!-- 5. Service — endpoint URL -->
  <wsdl:service name="TicketService">
    <wsdl:port name="TicketServicePort" binding="tns:TicketServiceBinding">
      <soap:address location="http://localhost:8500/TicketService.cfc"/>
    </wsdl:port>
  </wsdl:service>

</wsdl:definitions>

✅ Restrict ?wsdl to internal IPs only — via CF Admin or web server (nginx/Apache) rules
✅ Require authentication before serving operations — use Application.cfc onRequestStart
✅ Only mark functions access="remote" that genuinely need to be public
✅ Never return raw exception detail in SOAP Fault — catch errors and return a generic message
✅ Use HTTPS — SOAP envelopes carry all data as plaintext XML over HTTP
✅ Disable XXE in the CF JVM — add -Djavax.xml.parsers.SAXParserFactory to jvm.config

Lucee 7 also supports SOAP but its implementation is less complete — some edge cases in WSDL generation and complex type mapping behave differently. For enterprise SOAP integration, Adobe CF is the safer choice.

Quick reference — which port is which:

All files in this lesson go into /opt/coldfusion2025/cfusion/wwwroot/ and are accessed via the ColdFusion 2025 browser tab.

Activity 1 — Create a SOAP consumer page

What you are building: soap_consumer.cfm — a page that calls a public SOAP web service and displays the result. We use a local SOAP call (CF calling itself via TicketService.cfc) so the exercise works without internet access.

File to create: /opt/coldfusion2025/cfusion/wwwroot/soap_consumer.cfm

http://localhost:8500/seed-db.cfm

In the Terminal tab, first create the TicketService.cfc that will be consumed:

sudo tee /opt/coldfusion2025/cfusion/wwwroot/TicketService.cfc << 'EOF'
component displayname="TicketService" style="document" {

  remote struct function getTicketById(required numeric id) output="false" {
    var q = queryExecute(
      "SELECT id, title, status, priority FROM hd_tickets WHERE id = :id",
      { id: { value: arguments.id, cfsqltype: "cf_sql_integer" } },
      { datasource: "training_db" }
    );
    if (q.recordCount == 0) { return { error: "not found" }; }
    return {
      id       : q.id,
      title    : q.title,
      status   : q.status,
      priority : q.priority
    };
  }

  remote array function getAllTickets() output="false" {
    var q = queryExecute(
      "SELECT id, title, status, priority FROM hd_tickets ORDER BY id",
      {},
      { datasource: "training_db" }
    );
    var result = [];
    for (var row in q) {
      arrayAppend(result, {
        id       : row.id,
        title    : row.title,
        status   : row.status,
        priority : row.priority
      });
    }
    return result;
  }

}
EOF

Now create the consumer page:

sudo tee /opt/coldfusion2025/cfusion/wwwroot/soap_consumer.cfm << 'EOF'
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>SOAP Consumer Demo</title>
  <style>
    body  { font-family: sans-serif; max-width: 860px; margin: 2rem auto; }
    table { width: 100%; border-collapse: collapse; margin-top: 1rem; }
    th    { background: #3b82d4; color: #fff; padding: .5rem .75rem; text-align: left; }
    td    { padding: .45rem .75rem; border-bottom: 1px solid #e5e7eb; }
    .box  { padding: 1rem; background: #f0f4ff; border-left: 4px solid #3b82d4; margin: 1rem 0; }
  </style>
</head>
<body>
  <h1>SOAP Web Service Consumer</h1>

  <cfscript>
    // Create proxy from the local TicketService WSDL
    ws = createObject("webservice", "http://localhost:8500/TicketService.cfc?wsdl");

    // Call getTicketById — SOAP request/response handled by ColdFusion
    ticket = ws.getTicketById(1);

    // Call getAllTickets
    allTickets = ws.getAllTickets();
  </cfscript>

  <div class="box">
    <strong>SOAP call — getTicketById(1):</strong><br>
    <cfoutput>
      ID: #ticket.id# | Title: #encodeForHTML(ticket.title)# |
      Status: #encodeForHTML(ticket.status)# | Priority: #encodeForHTML(ticket.priority)#
    </cfoutput>
  </div>

  <h2>getAllTickets() — full ticket list via SOAP</h2>
  <table>
    <tr><th>ID</th><th>Title</th><th>Status</th><th>Priority</th></tr>
    <cfoutput>
      <cfloop array="#allTickets#" index="t">
        <tr>
          <td>#t.id#</td>
          <td>#encodeForHTML(t.title)#</td>
          <td>#encodeForHTML(t.status)#</td>
          <td>#encodeForHTML(t.priority)#</td>
        </tr>
      </cfloop>
    </cfoutput>
  </table>

</body>
</html>
EOF

Verify both files exist:

grep -i "cfinvoke\|createObject" /opt/coldfusion2025/cfusion/wwwroot/soap_consumer.cfm

Open /soap_consumer.cfm in the ColdFusion 2025 browser tab — you should see the ticket loaded via SOAP and the full ticket list.

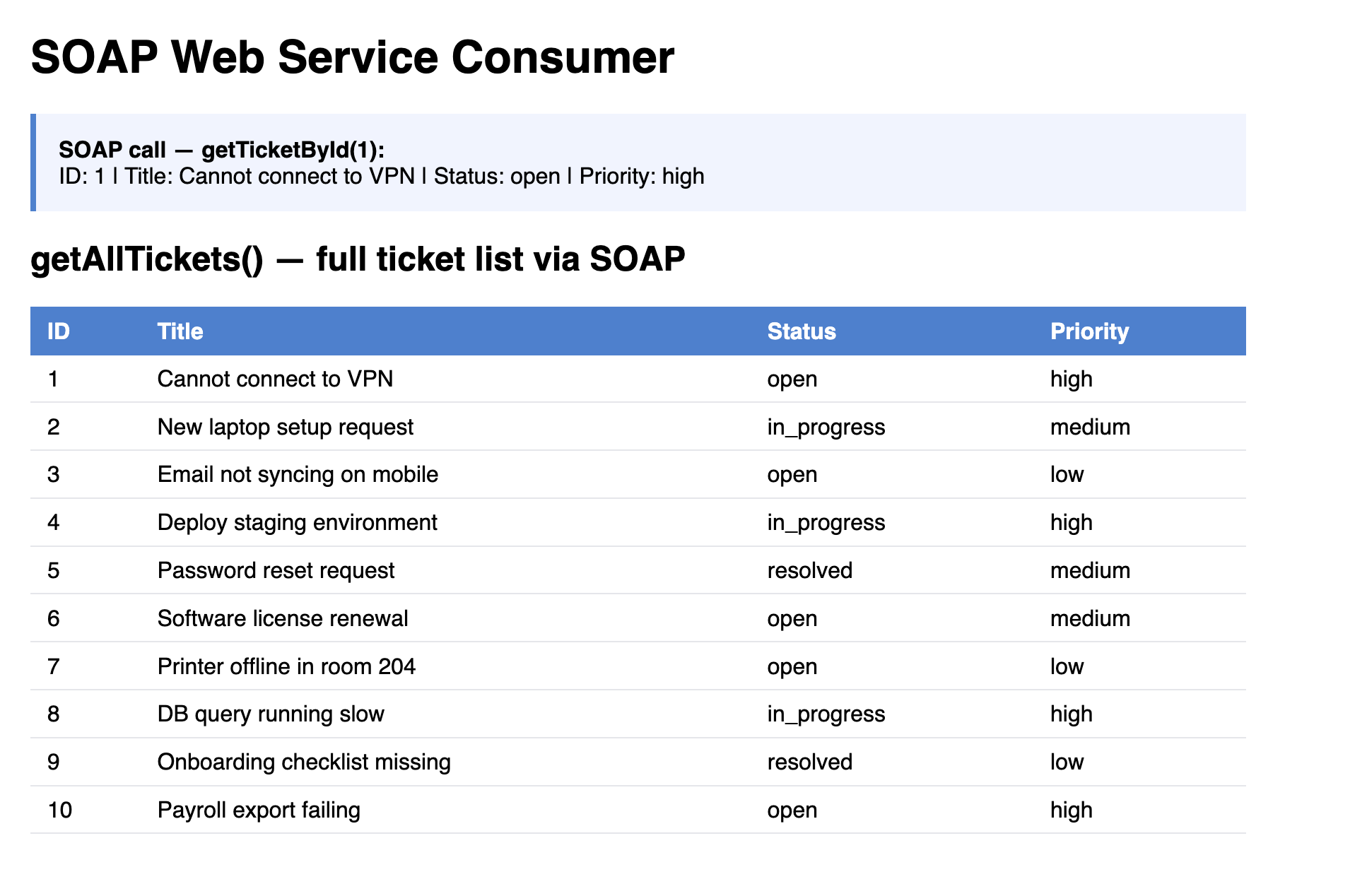

soap_consumer.cfm — tickets loaded via SOAP proxy calls to TicketService.cfc running on the same CF instance.

Activity 2 — Verify the WSDL is accessible

What this proves: When ColdFusion sees ?wsdl appended to a CFC URL it generates a complete WSDL document describing all remote functions. This is the contract that any SOAP client — Java, .NET, Python, or another CF app — uses to know what operations are available and what parameters they accept.

In the Terminal tab, confirm the WSDL returns HTTP 200:

curl -s -o /dev/null -w "HTTP %{http_code}\n" "http://localhost:8500/TicketService.cfc?wsdl"

Then inspect the first few lines of the generated WSDL:

curl -s "http://localhost:8500/TicketService.cfc?wsdl" | head -20

You should see an XML document starting with <?xml and containing <wsdl:definitions — ColdFusion generated this automatically from your CFC's remote function signatures.

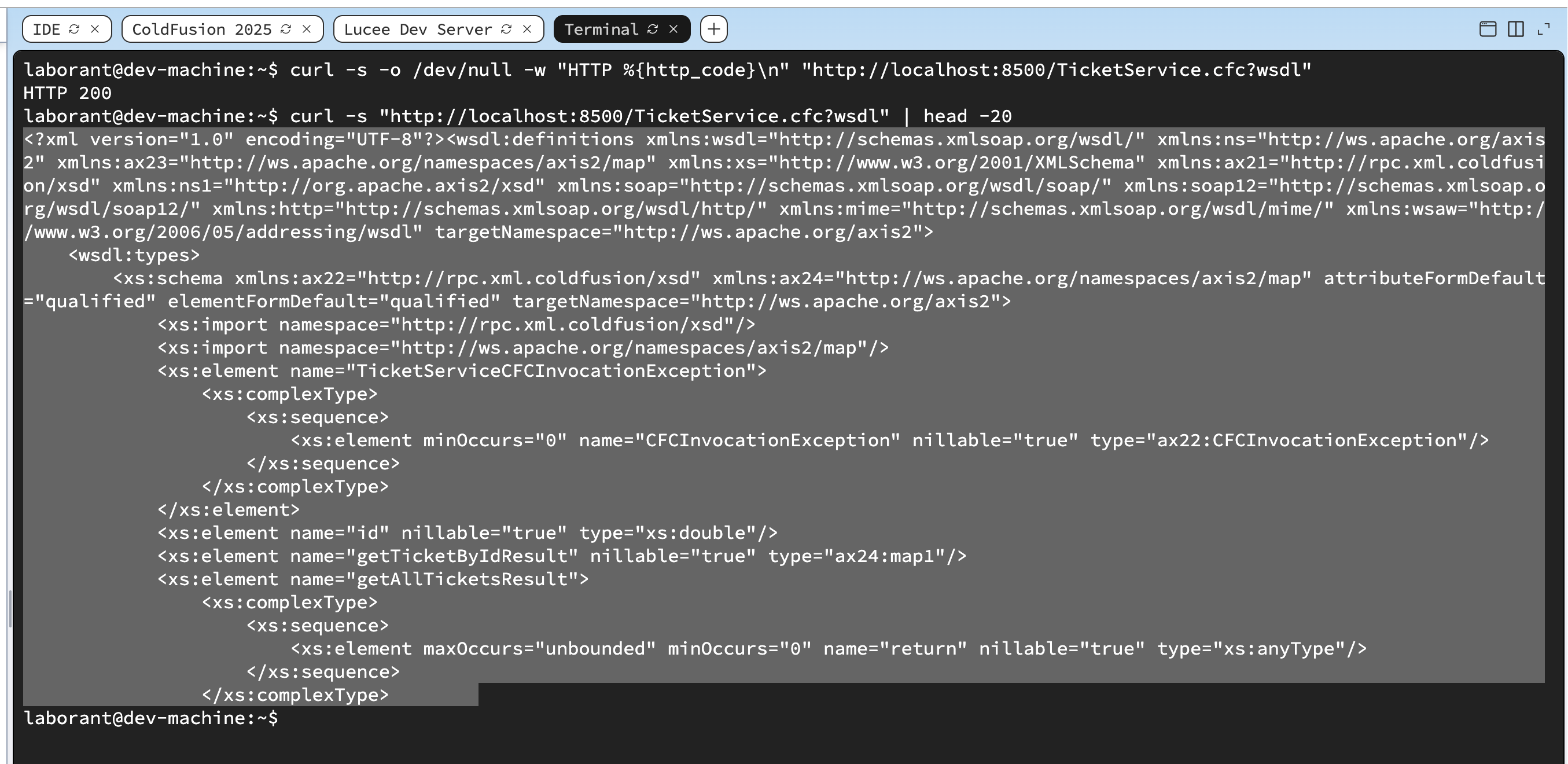

HTTP 200 on ?wsdl — ColdFusion auto-generated the WSDL from the remote function signatures in TicketService.cfc.

When all the checks above are green, this lesson is complete. Your progress is saved automatically — move straight on to the next lesson.
