Real-Time Communication with WebSockets

WebSockets — Live, Two-Way Connections Without the Request Overhead

HTTP is a request–response protocol: the client sends a request, the server replies, and the connection closes. That works well for loading pages and calling APIs, but it is the wrong tool for anything that must push data from the server to the client without being asked — live chat messages, real-time notifications, live dashboards.

WebSockets solve this by upgrading an HTTP connection to a persistent, full-duplex channel. Once the handshake completes, both sides can send frames at any time without the overhead of a new HTTP request for every message.

Why does this matter for ColdFusion developers?

• ColdFusion 2025 ships with a built-in WebSocket server — no extra daemon, no third-party proxy
• The HTTP server runs on port 8500 in the lab, and in this lab the WebSocket server also runs on port 8500 — because startListenerOnNormalPort is enabled in the CF config
• The server side is a plain CFC that extends CFIDE.websocket.ChannelListener — the same CFC model you already know
• You can push a message to every connected client from any CFML page with a single function call: wsPublish
• The browser connects using a new WebSocket() call pointed at the same host and port as the HTTP page

cat /opt/coldfusion2025/cfusion/lib/neo-websocket.xml | grep -A2 "startListenerOnNormalPort"

<var name='startListenerOnNormalPort'>
    <boolean value='true'/>

ColdFusion's built-in WebSocket server: register channels in Application.cfc, implement a handler CFC, connect from the browser — all on the same port.

1. The WebSocket handler CFC

The server side of a WebSocket channel is a CFC with three lifecycle methods. ColdFusion calls them automatically as connections open, receive messages, and close.

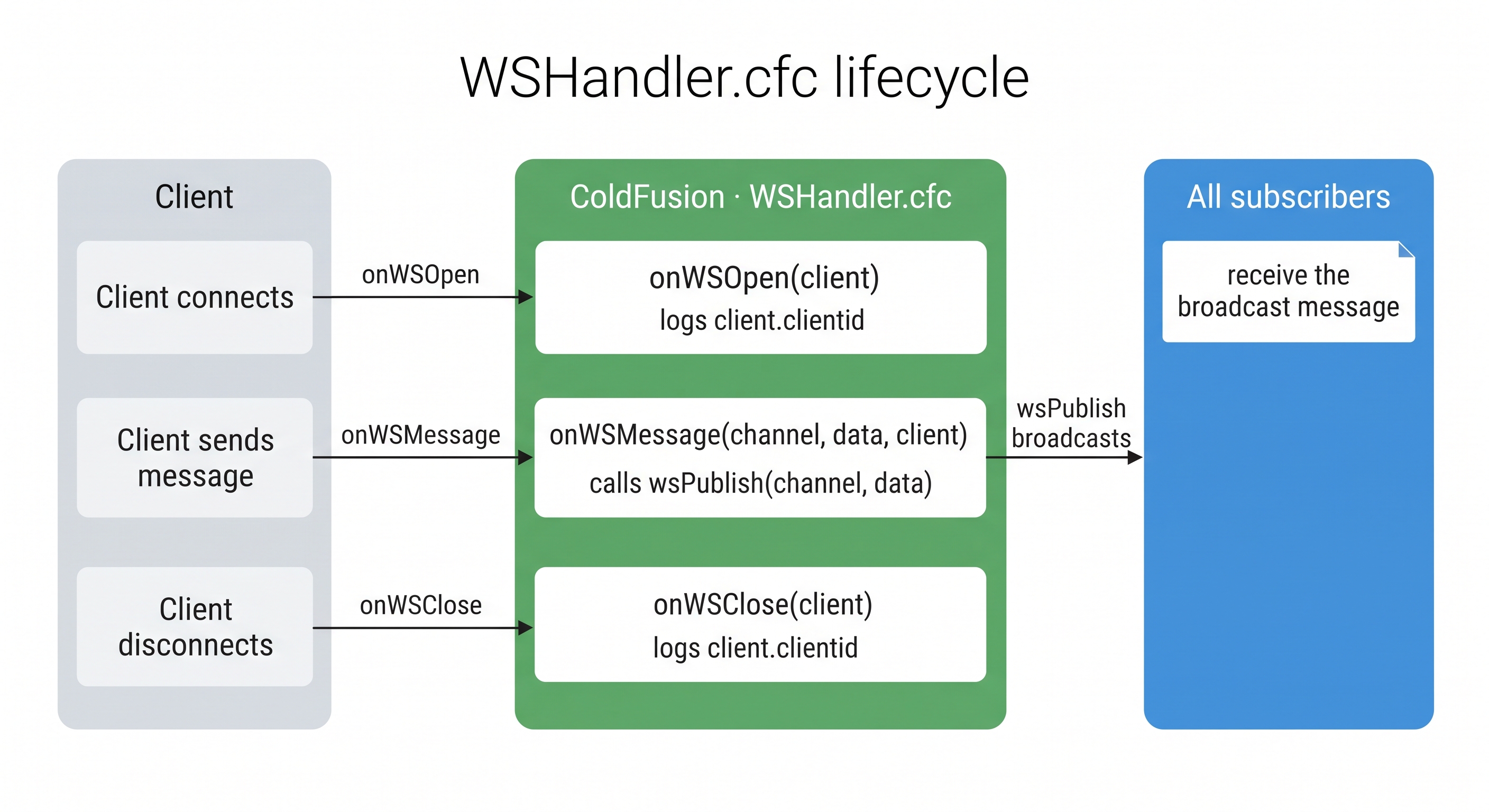

Three lifecycle methods: onWSOpen when a client connects, onWSMessage when a frame arrives, onWSClose when the connection drops.

Every handler CFC must start with this declaration — the extends is not optional:

component extends="CFIDE.websocket.ChannelListener" {
    // your three lifecycle methods go here
}

ColdFusion calls isInstanceOf("CFIDE.websocket.ChannelListener") on your CFC at startup. If the extends is missing, every request to the application returns 500.

onWSMessage — a message arrived

Called every time a client sends a frame to the channel. This is where you decide what to do with the message — in the simplest case, echo it back to everyone.

public void function onWSMessage(
    required string channel,
    required any    data,
    required struct client
) {
    // Echo the message back to every subscriber on the same channel
    wsPublish(channel, data);
}

wsPublish(channel, data) broadcasts data to every client currently subscribed to that channel — including the sender.

onWSOpen — a client just connected

Called once per connection when a new client subscribes to any channel this CFC handles. Use it to log connections or send a welcome message.

public void function onWSOpen(required struct client) {
    writeLog(
        file = "websocket",
        text = "WS connection opened: #client.clientid#"
    );
}

onWSClose — a client disconnected

Called when a connection drops — tab closed, network lost, or the client called .close() in JavaScript. Use it to clean up any per-client state you are tracking.

public void function onWSClose(required struct client) {
    writeLog(
        file = "websocket",
        text = "WS connection closed: #client.clientid#"
    );
}

The complete handler CFC

Put it all together — this is the file you will create in Activity 1:

// WSHandler.cfc — place in the CF wwwroot
component extends="CFIDE.websocket.ChannelListener" {

    public void function onWSMessage(
        required string channel,
        required any    data,
        required struct client
    ) {
        wsPublish(channel, data);
    }

    public void function onWSOpen(required struct client) {
        writeLog(file="websocket", text="WS opened: #client.clientid#");
    }

    public void function onWSClose(required struct client) {
        writeLog(file="websocket", text="WS closed: #client.clientid#");
    }

}

The client struct is provided by ColdFusion and contains at minimum clientid — a unique identifier for that connection. You can use it to send targeted messages or track online users.

// ✗ Wrong — CF throws InvalidListenerException at startup
component {
    public void function onWSMessage(...) { ... }
}

// ✓ Correct
component extends="CFIDE.websocket.ChannelListener" {
    public void function onWSMessage(...) { ... }
}

rm -f /opt/coldfusion2025/cfusion/wwwroot/WEB-INF/cfclasses/cfWSHandler* && \
sudo /opt/coldfusion2025/cfusion/bin/coldfusion restart

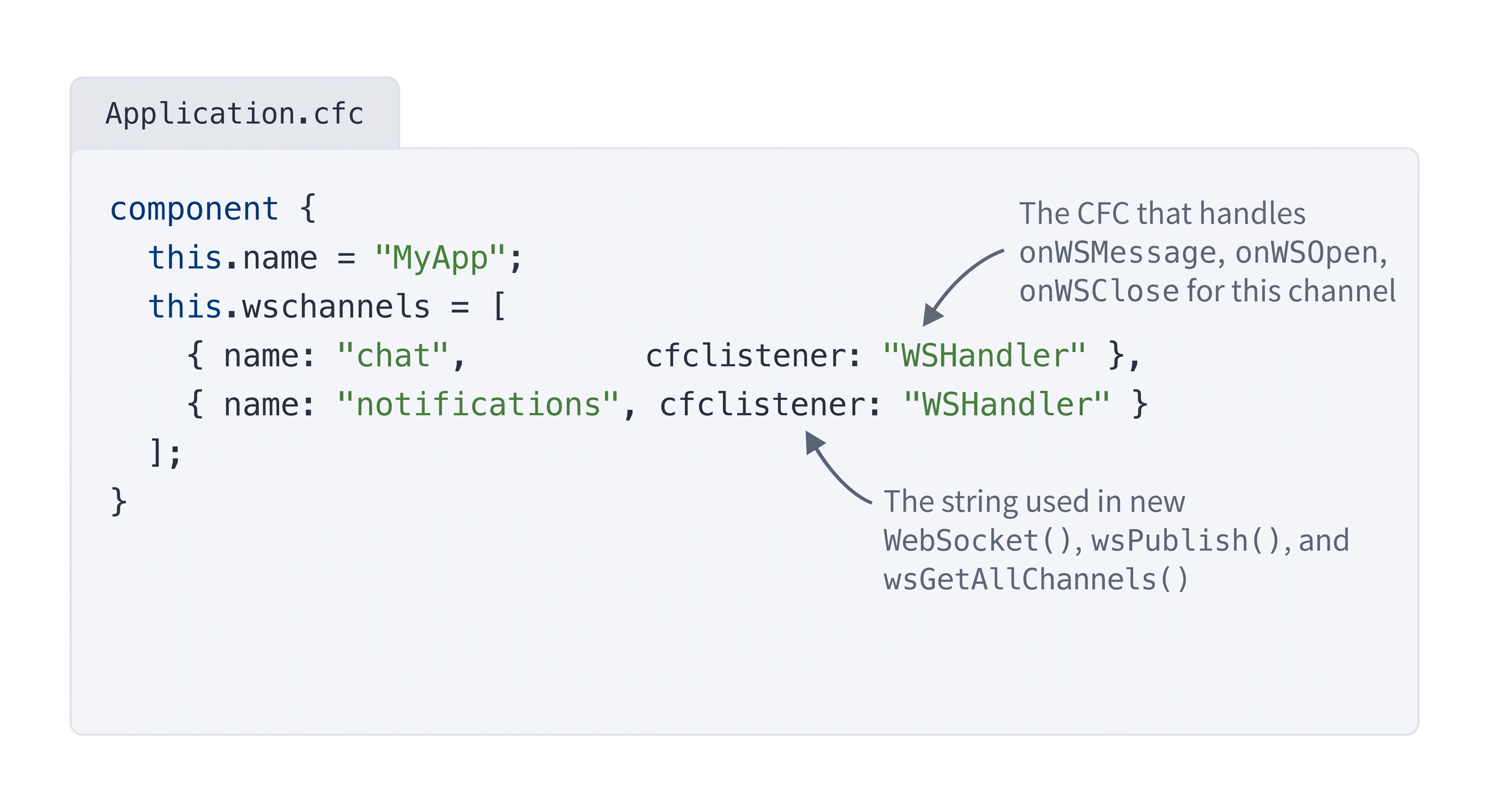

2. Register channels in Application.cfc

Channels must be declared in Application.cfc before the WebSocket server will accept connections to them. Use the this.wschannels array — each entry is a struct with a name and a cfclistener:

Both channels point to the same handler CFC. Multiple channels can share a handler — they are distinguished by the channel argument in onWSMessage.

// Application.cfc
component {

    this.name = "MyApp";

    // Declare WebSocket channels.
    // Each channel needs: name (string) and cfclistener (CFC name).
    this.wschannels = [
        { name="chat",          cfclistener="WSHandler" },
        { name="notifications", cfclistener="WSHandler" }
    ];

}

A few rules:

• The cfclistener value is the CFC name without .cfc, resolved relative to the webroot (or via the component path)
• The handler CFC must be in the same directory or a subdirectory of the application — CF will not find it otherwise
• Channel names must be unique across the application
• Use name="channelName" syntax (equals sign, not colon) — the JSON colon syntax {"name": "chat"} is not supported in this.wschannels
• You must restart the CF application (or touch Application.cfc) after changing this.wschannels
• If no cfclistener is specified, ColdFusion uses the default CFIDE/websocket/ChannelListener.cfc which allows everything through

// ✓ Correct
this.wschannels = [{ name="chat", cfclistener="WSHandler" }];

// ✗ Wrong — CF silently misreads this
this.wschannels = [{ "name": "chat", "cfclistener": "WSHandler" }];

3. The browser client

ColdFusion provides the <cfwebsocket> tag to create WebSocket connections from a CFM page. The tag handles the subscription handshake automatically and wraps the connection in a named JavaScript object.

<cfwebsocket> vs new WebSocket() — which to use in this lab

<cfwebsocket> is the standard CF approach — it handles the subscription handshake automatically. However, it hardcodes localhost in the JavaScript it emits, which only works when the browser and server are on the same machine. In this lab the browser connects through the iximiuz platform proxy with a generated hostname — localhost resolves to the student's own laptop rather than the VM.

For this reason the activity uses a raw new WebSocket() call built from window.location.host, which the browser already knows correctly regardless of the proxy. The WebSocket connects on port 8500 — the same port as HTTP, because startListenerOnNormalPort=true in the lab's CF config. <cfwebsocket> remains the right choice for any deployment where the browser hits the server directly.

Step 1 — The <cfwebsocket> tag

This single CFML tag replaces several lines of JavaScript boilerplate. Drop it anywhere in your CFM page — ColdFusion emits the connection script automatically.

<cfwebsocket
    name        = "chatWS"
    onMessage   = "handleMessage"
    onOpen      = "handleOpen"
    onClose     = "handleClose"
    subscribeTo = "chat"
>

name="chatWS" means you will call chatWS.publish(...) from JavaScript — it is the handle for this connection.

Step 2 — handleOpen and handleClose

These two functions mirror onWSOpen / onWSClose on the server — they fire when the connection state changes on the browser side.

function handleOpen() {
    // Connection is live — safe to publish now
    document.getElementById("status").textContent = "Connected";
}

function handleClose() {
    // Connection dropped — warn the user
    document.getElementById("status").textContent = "Disconnected";
}

Step 3 — handleMessage

Every frame the server sends — including system responses like subscribe confirmations — arrives here. Check msg.type === "data" to filter out system messages and only render real chat payloads.

function handleMessage(msg) {
    if (msg.type === "data") {
        document.getElementById("chat-log").insertAdjacentHTML(
            "beforeend",
            `<p><strong>${msg.publisherID}</strong>: ${msg.data}</p>`
        );
    }
}

Step 4 — sending a message

The JavaScript object created by <cfwebsocket name="chatWS"> exposes a .publish() method. Call it from any JS function to send a message to a channel:

function sendMessage(text) {
    chatWS.publish("chat", text);
}

The object also exposes .subscribe(channel), .unsubscribe(channel), .getSubscriberCount(channel), and .isConnectionOpen() — useful for more advanced interactions.

The complete browser client

All four pieces together — this is what goes in ws_demo.cfm:

<cfwebsocket
    name        = "chatWS"
    onMessage   = "handleMessage"
    onOpen      = "handleOpen"
    onClose     = "handleClose"
    subscribeTo = "chat"
>

<script>
function handleOpen() {
    document.getElementById("status").textContent = "Connected";
}

function handleMessage(msg) {
    if (msg.type === "data") {
        document.getElementById("chat-log").insertAdjacentHTML(
            "beforeend",
            `<p><strong>${msg.publisherID}</strong>: ${msg.data}</p>`
        );
    }
}

function handleClose() {
    document.getElementById("status").textContent = "Disconnected";
}

function sendMessage(text) {
    chatWS.publish("chat", text);
}
</script>

⚠️ Always use wss:// when the page is served over HTTPS

ws:// and wss:// mirror http:// and https:// exactly — wss:// is the TLS-encrypted WebSocket protocol. Browsers enforce a hard rule: a page loaded over HTTPS may not open an unencrypted ws:// connection. Attempting it produces a Mixed Content error in the browser console and the connection is blocked before it reaches the server:

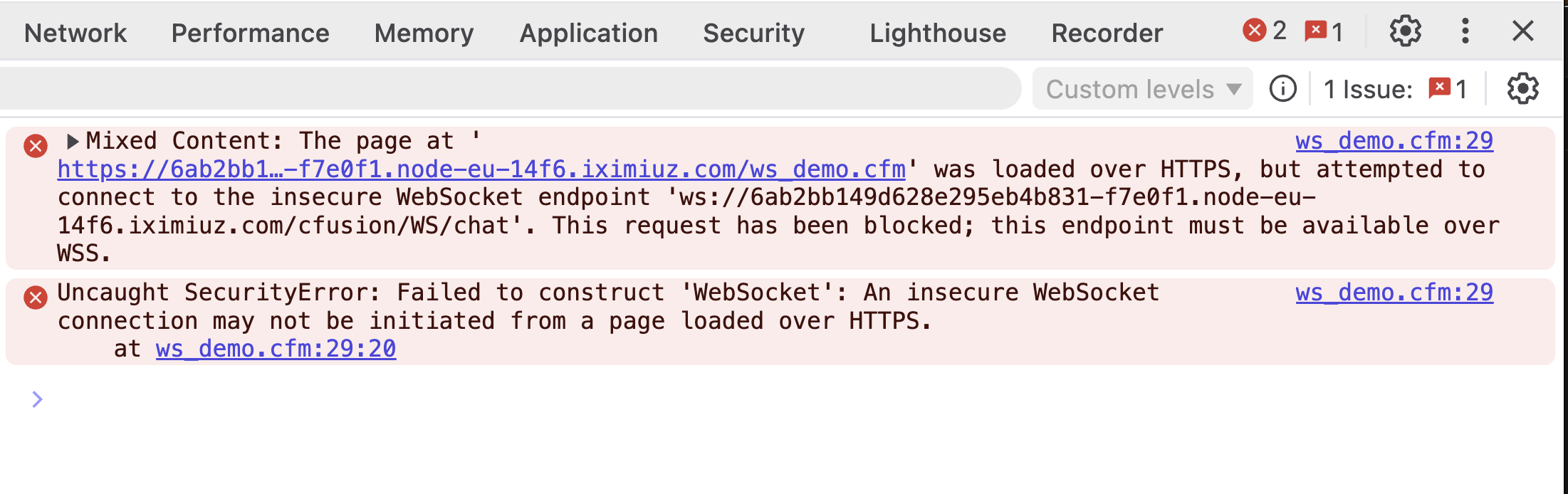

Mixed Content error — the browser blocks ws:// from an HTTPS page. Switch to wss:// to fix it.

The lab is served over HTTPS, so wss:// is required. Rather than hardcoding either protocol, derive it from the page:

const wsProto = window.location.protocol === "https:" ? "wss://" : "ws://";
const ws = new WebSocket(wsProto + window.location.host + "/cfusion/WS/chat");

Copy to clipboard

This works in the lab (HTTPS → wss://), in local development (HTTP → ws://), and in any production deployment — no changes needed when moving between environments.

4. Push messages from server-side CFML

wsPublish broadcasts a message to every client currently subscribed to a channel. You can call it from any CFML page, scheduled task, or CFC — not just from inside the handler:

<cfscript>
    // Broadcast a notification to all connected users
    wsPublish("notifications", serializeJSON({
        type:      "alert",
        message:   "New ticket assigned to you",
        timestamp: dateTimeFormat(now(), "yyyy-mm-dd HH:nn:ss")
    }));
</cfscript>

This is the pattern for server-initiated pushes: a background job detects an event (new ticket, completed export, price change) and calls wsPublish — all connected clients receive the update without polling.

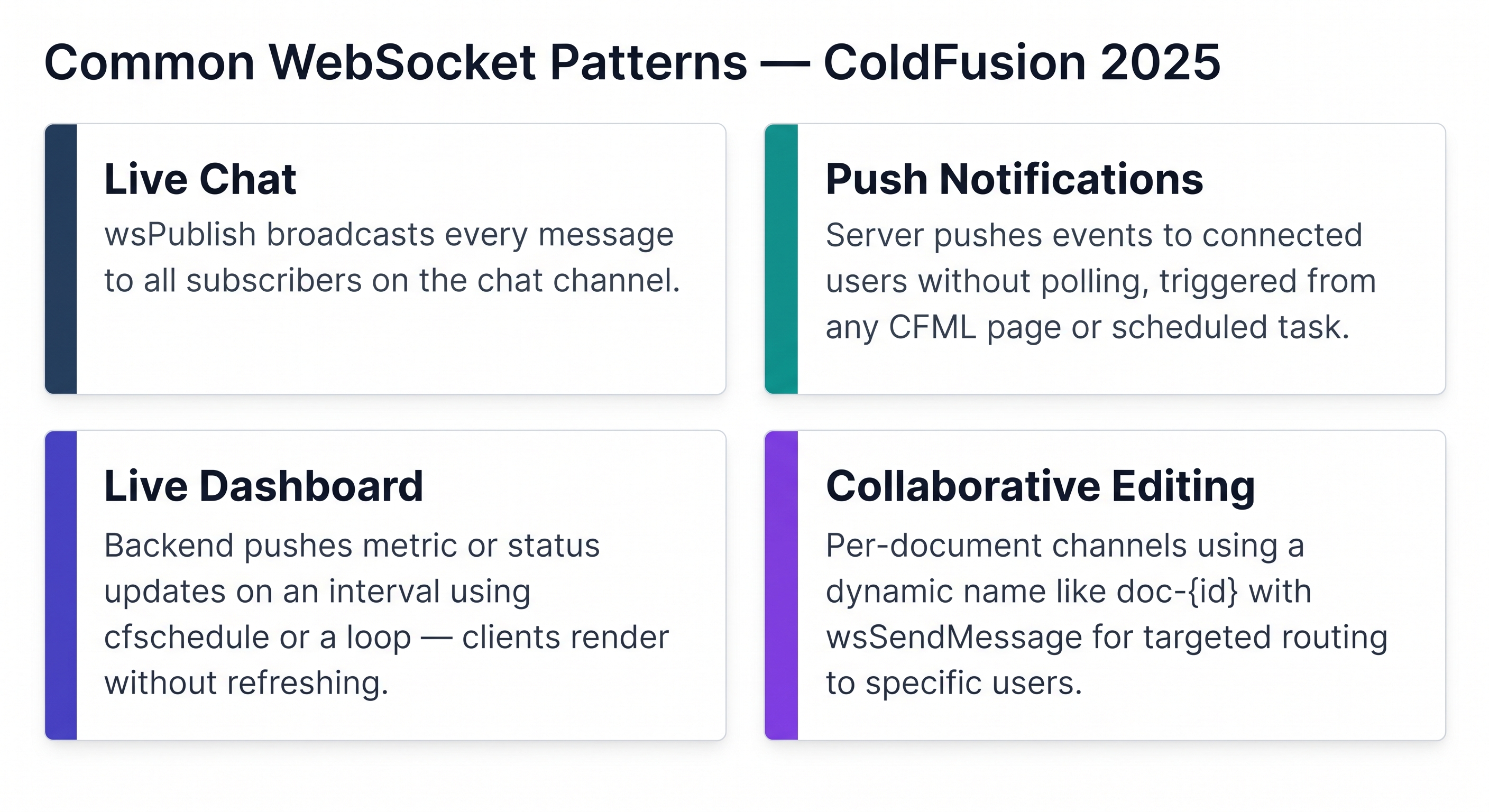

5. Common use cases

Four common WebSocket patterns — all supported natively with ColdFusion's built-in WS server and wsPublish.

Activity 1 — Create the WebSocket handler CFC

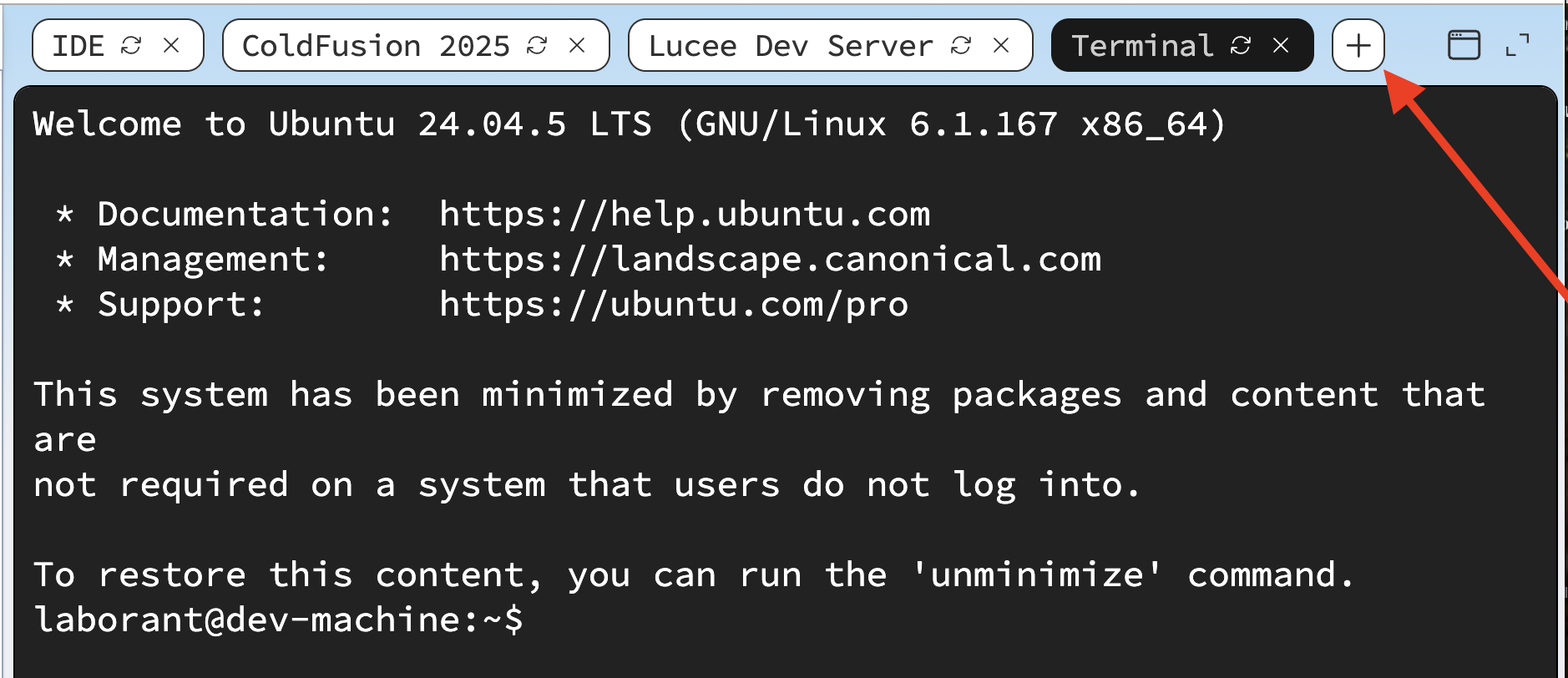

Step 1 — Open a Terminal tab

Click the Terminal tab in the lab panel. You should see a prompt like:

laborant@dev-machine:~$

Step 2 — Create WSHandler.cfc in the ColdFusion webroot

The ColdFusion webroot is /opt/coldfusion2025/cfusion/wwwroot/. Run the following command — it creates the file and writes the full handler CFC in one step:

cat > /opt/coldfusion2025/cfusion/wwwroot/WSHandler.cfc << 'EOF'
component extends="CFIDE.websocket.ChannelListener" {

    public void function onWSMessage(
        required string channel,
        required any    data,
        required struct client
    ) {
        wsPublish(channel, data);
    }

    public void function onWSOpen(required struct client) {
        writeLog(file="websocket", text="WS opened: #client.clientid#");
    }

    public void function onWSClose(required struct client) {
        writeLog(file="websocket", text="WS closed: #client.clientid#");
    }

}
EOF

The command returns silently with no output — that means it succeeded.

Step 3 — Verify the file was created correctly

grep -l "wsPublish\|onWSMessage" /opt/coldfusion2025/cfusion/wwwroot/*.cfc

Expected output:

/opt/coldfusion2025/cfusion/wwwroot/WSHandler.cfc

If you see that path, the file is in place and contains both required methods. If nothing is returned, the file is missing or the command in Step 2 did not run fully — try Step 2 again.

Activity 2 — Create ws_demo.cfm and register the channel

Step 1 — Create Application.cfc in the ColdFusion webroot

Application.cfc is ColdFusion's application configuration file — it sits in the webroot and is loaded automatically on the first request. This is where you register WebSocket channels: without a this.wschannels entry here, ColdFusion has no record of the chat channel and any browser that tries to subscribe will be rejected before WSHandler.cfc is ever called.

Still in your Terminal tab — run the following command to create Application.cfc in the ColdFusion webroot:

cat > /opt/coldfusion2025/cfusion/wwwroot/Application.cfc << 'EOF'
component {

    this.name = "MyApp";

    this.wschannels = [
        { name="chat", cfclistener="WSHandler" }
    ];

}
EOF

The command returns silently — that means it succeeded.

Verify Application.cfc was created with the channel registered:

grep -A3 "wschannels" /opt/coldfusion2025/cfusion/wwwroot/Application.cfc

Expected output:

    this.wschannels = [
        { name="chat", cfclistener="WSHandler" }
    ];

If you see those three lines, the channel is registered. If nothing is returned, the file is missing or the cat command did not complete — run it again.

Force ColdFusion to reload Application.cfc now:

touch /opt/coldfusion2025/cfusion/wwwroot/Application.cfc && \
curl -s -o /dev/null http://localhost:8500/index.cfm

The touch updates the file's timestamp — CF detects the change and reinitialises the application on the very next request. The curl triggers that request immediately so the channel is live before you open the browser. Without this step, CF may still be running an older cached application with no channels registered.

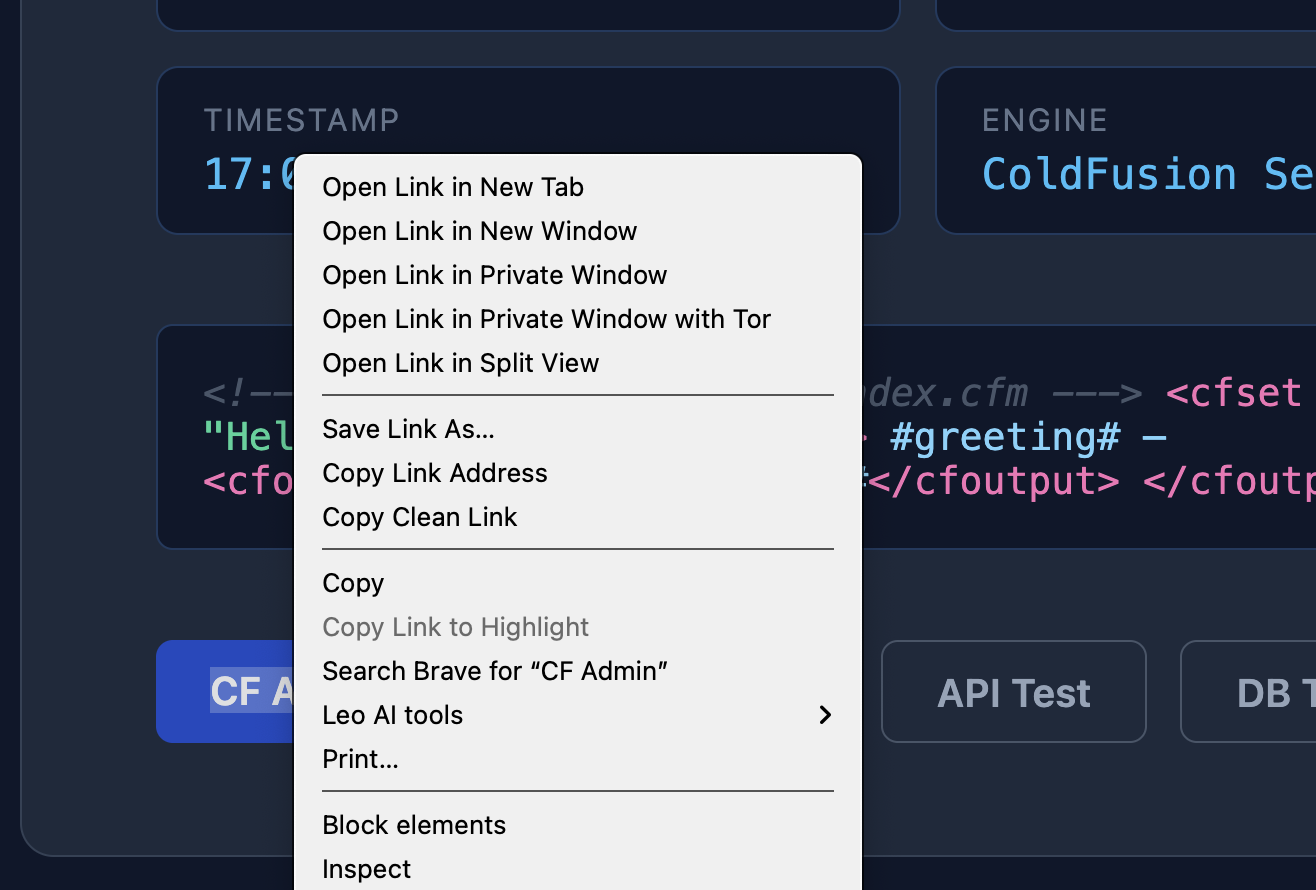

💡 Open CF Admin in a new window — don't lose your workspace

When you need to check something in the CF Admin panel, right-click the link and choose Open in new window (or new tab). Opening it in the same window will navigate away from your current workspace and you will lose your place in the lab.

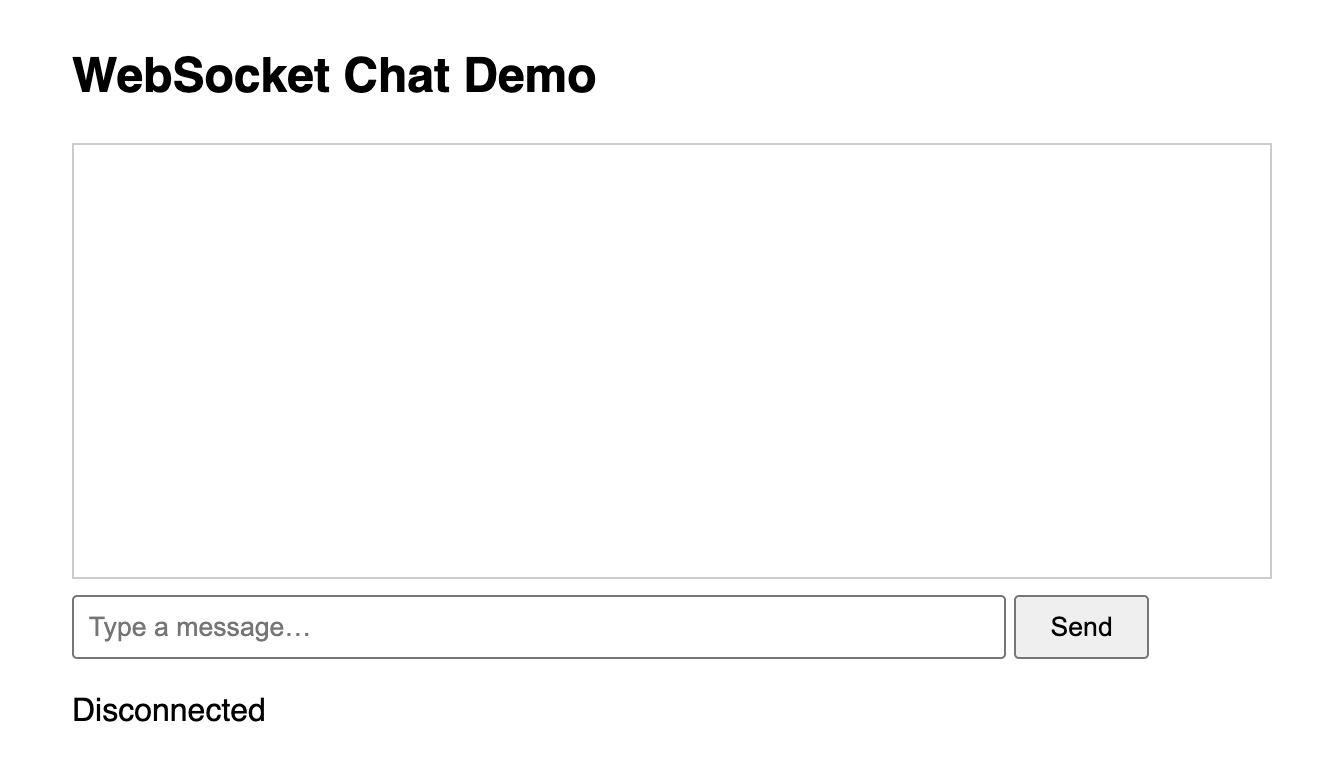

Step 2 — Create ws_demo.cfm with a chat UI:

cat > /opt/coldfusion2025/cfusion/wwwroot/ws_demo.cfm << 'EOF'
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>CF WebSocket Demo</title>
    <style>
        body { font-family: sans-serif; max-width: 600px; margin: 2rem auto; }
        #chat-log { border: 1px solid #ccc; height: 200px; overflow-y: auto; padding: 0.5rem; margin-bottom: 0.5rem; }
        #msg-input { width: 75%; padding: 0.4rem; }
        button { padding: 0.4rem 1rem; }
    </style>
</head>
<body>
    <h2>WebSocket Chat Demo</h2>
    <div id="chat-log"></div>
    <input id="msg-input" type="text" placeholder="Type a message…">
    <button onclick="sendMsg()">Send</button>

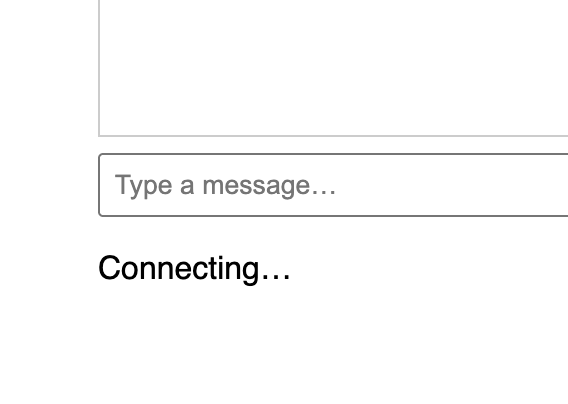

    <p id="status">Connecting…</p>

    <script>
        const log    = document.getElementById("chat-log");
        const status = document.getElementById("status");

        // Derive the WebSocket protocol from the page protocol:
        //   https → wss://  (required — browsers block ws:// from HTTPS pages)
        //   http  → ws://
        // Using window.location.host (hostname + port) ensures the connection
        // routes correctly through the lab proxy without hardcoding any address.
        const wsProto = window.location.protocol === "https:" ? "wss://" : "ws://";
        const ws = new WebSocket(wsProto + window.location.host + "/cfusion/WS/chat");

        ws.onopen = function() {
            status.textContent = "Connected";
        };

        ws.onmessage = function(event) {
            const msg = JSON.parse(event.data);
            if (msg.type === "data") {
                log.insertAdjacentHTML("beforeend",
                    `<p><strong>user</strong>: ${msg.data}</p>`);
                log.scrollTop = log.scrollHeight;
            }
        };

        ws.onclose = function() {
            status.textContent = "Disconnected";
        };

        function sendMsg() {
            const input = document.getElementById("msg-input");
            if (!input.value.trim()) return;
            ws.send(JSON.stringify({ type: "publish", channel: "chat", data: input.value }));
            input.value = "";
        }
    </script>
</body>
</html>
EOF

Step 3 — Verify the page loads and the WebSocket port is open

Back in your Terminal tab — run both checks below. Do not run these in the browser address bar.

First confirm the page itself returns HTTP 200:

curl -s -o /dev/null -w "%{http_code}" http://localhost:8500/ws_demo.cfm

Expected output: 200

Then confirm ColdFusion's WebSocket service is running. In this lab WebSocket connections are handled on port 8500 (same as HTTP) because startListenerOnNormalPort=true. Confirm the WebSocket service is active:

cat /opt/coldfusion2025/cfusion/lib/neo-websocket.xml | grep -A2 "startWebSocketService"

Expected output:

<var name='startWebSocketService'>
    <boolean value='true'/>

If the value is false, the WebSocket service is disabled and the browser will show "Connecting…" forever — like this:

Status stuck on "Connecting…" — the WebSocket port is not reachable. Fix it with the restart command below before opening the browser.

In that case restart ColdFusion:

sudo /opt/coldfusion2025/cfusion/bin/coldfusion restart

Wait ~20 seconds, then repeat both checks before opening the browser.

Once both ports respond, open http://localhost:8500/ws_demo.cfm in the lab browser:

The chat demo page — once the WebSocket handshake completes the status line changes from "Connecting…" to "Connected".

tail -20 /opt/coldfusion2025/cfusion/logs/exception.log

grep -i "cfusion/WS\|wschannels" \
  /opt/coldfusion2025/cfusion/wwwroot/ws_demo.cfm \
  /opt/coldfusion2025/cfusion/wwwroot/Application.cfc

touch /opt/coldfusion2025/cfusion/wwwroot/Application.cfc

head -2 /opt/coldfusion2025/cfusion/wwwroot/WSHandler.cfc

component extends="CFIDE.websocket.ChannelListener" {

cat > /opt/coldfusion2025/cfusion/wwwroot/WSHandler.cfc << 'EOF'
component extends="CFIDE.websocket.ChannelListener" {

    public void function onWSMessage(
        required string channel,
        required any    data,
        required struct client
    ) {
        wsPublish(channel, data);
    }

    public void function onWSOpen(required struct client) {
        writeLog(file="websocket", text="WS opened: #client.clientid#");
    }

    public void function onWSClose(required struct client) {
        writeLog(file="websocket", text="WS closed: #client.clientid#");
    }

}
EOF

rm -f /opt/coldfusion2025/cfusion/wwwroot/WEB-INF/cfclasses/cfWSHandler* && \
sudo /opt/coldfusion2025/cfusion/bin/coldfusion restart

Activity 3 — Test end-to-end with a server push

ColdFusion's WebSocket subscription protocol requires a specific handshake message that only the <cfwebsocket> tag sends automatically. Command-line tools like websocat open a raw TCP connection but never send this handshake, so CF never registers them as subscribers. The correct end-to-end test uses the browser and a server-side push.

This activity needs two terminal tabs open at the same time. Click the + button at the top of the terminal panel to open a second tab:

Click + to open a second terminal tab. Click each tab to switch between them.

Step 1 — In Terminal 1, create the server-side push script:

cat > /opt/coldfusion2025/cfusion/wwwroot/ws_push_test.cfm << 'EOF'
<cfscript>
    wsPublish("chat", "Hello from wsPublish — " & timeFormat(now(), "HH:mm:ss"));
    writeOutput("Published");
</cfscript>
EOF

Step 2 — Open http://localhost:8500/ws_demo.cfm in the lab browser. Wait until the status line shows Connected.

Step 3 — In Terminal 2, trigger the server-side push:

curl -s http://localhost:8500/ws_push_test.cfm

You should see Published in Terminal 2 and the message appear in the chat log in the browser instantly.

Key takeaways

When all the checks above are green, this lesson is complete. Your progress is saved automatically — move straight on to the next lesson.

Further reading

• Adobe ColdFusion documentation — Using WebSocket to broadcast messages
