Module 2 - Build a Real MCP Server ended with one innocent flag: transport="http". Your notes server went from a subprocess your IDE launches to a network endpoint. That flag also removed every protection the stdio shape had - local trust boundary, no exposure, no attacker - and left you with exactly the situation every REST API has lived through: a service on a socket that strangers can reach.

The Model Context Protocol does not require every server to use authorization. When an MCP server does authorize clients over HTTP, it follows MCP's OAuth profile: the server acts as an OAuth resource server, and clients obtain Bearer tokens from an authorization server. If you have ever pointed an API at Okta, Keycloak, or Entra ID, you have built this topology - MCP defines how its discovery and HTTP requests fit into it.

This module builds that topology for real: Keycloak as the authorization server, your notes server as the resource server, and curl playing the MCP client - exactly as it did in module 1, except now the first curl is refused, and working through the refusal is the protocol's own discovery dance.

Prerequisites

• Module 1 - MCP is Just HTTP POSTs and Module 2 - Build a Real MCP Server, or equivalent: you know the initialize handshake, the session header, and tools/call.
• curl and jq fluency; base64 reading glasses for JWTs (we provide the one-liner).
• No prior OAuth knowledge assumed - every term is defined when it first appears.

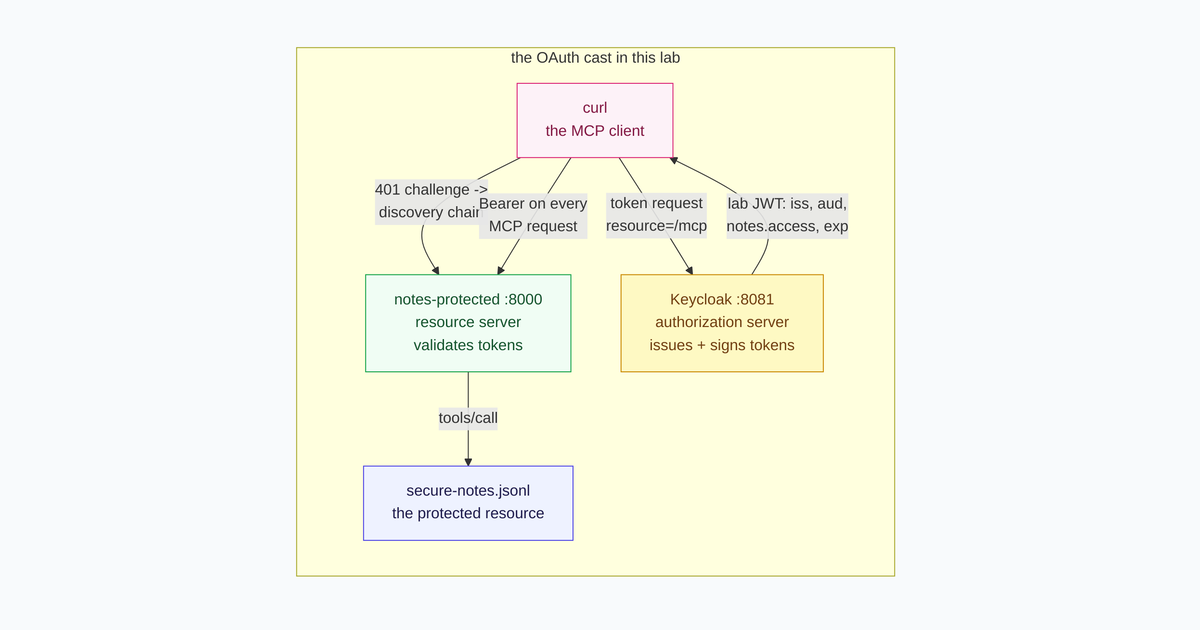

The OAuth cast, mapped onto this lab: curl is the client, Keycloak the authorization server, notes-protected.py the resource server.

OAuth from zero: one mechanism, two recipes

If you have never configured an identity provider, you have still felt the problem OAuth solves: an API needs to know who is calling and what the caller may do - and the naive answers are all bad. Shared passwords are often long-lived and reused. Static API keys are frequently all-or-nothing and rot in dotfiles. No API wants to become the password vault for every service that calls it.

OAuth 2.1 (OAuth 2.0 hardened by a decade of attack reports) is the industry's answer, and the mechanism fits in one paragraph:

A client that wants to call an API first proves itself to a trusted third party - the authorization server - and asks for a token. An OAuth access token may be an opaque handle or a structured token. In this lab Keycloak issues a short-lived, signed JWT describing its issuer, audience, scope, and expiry. The client presents it to the API on every call; the API verifies the signature and claims. The long-lived client secret stays at the token endpoint and is never sent to the MCP server.

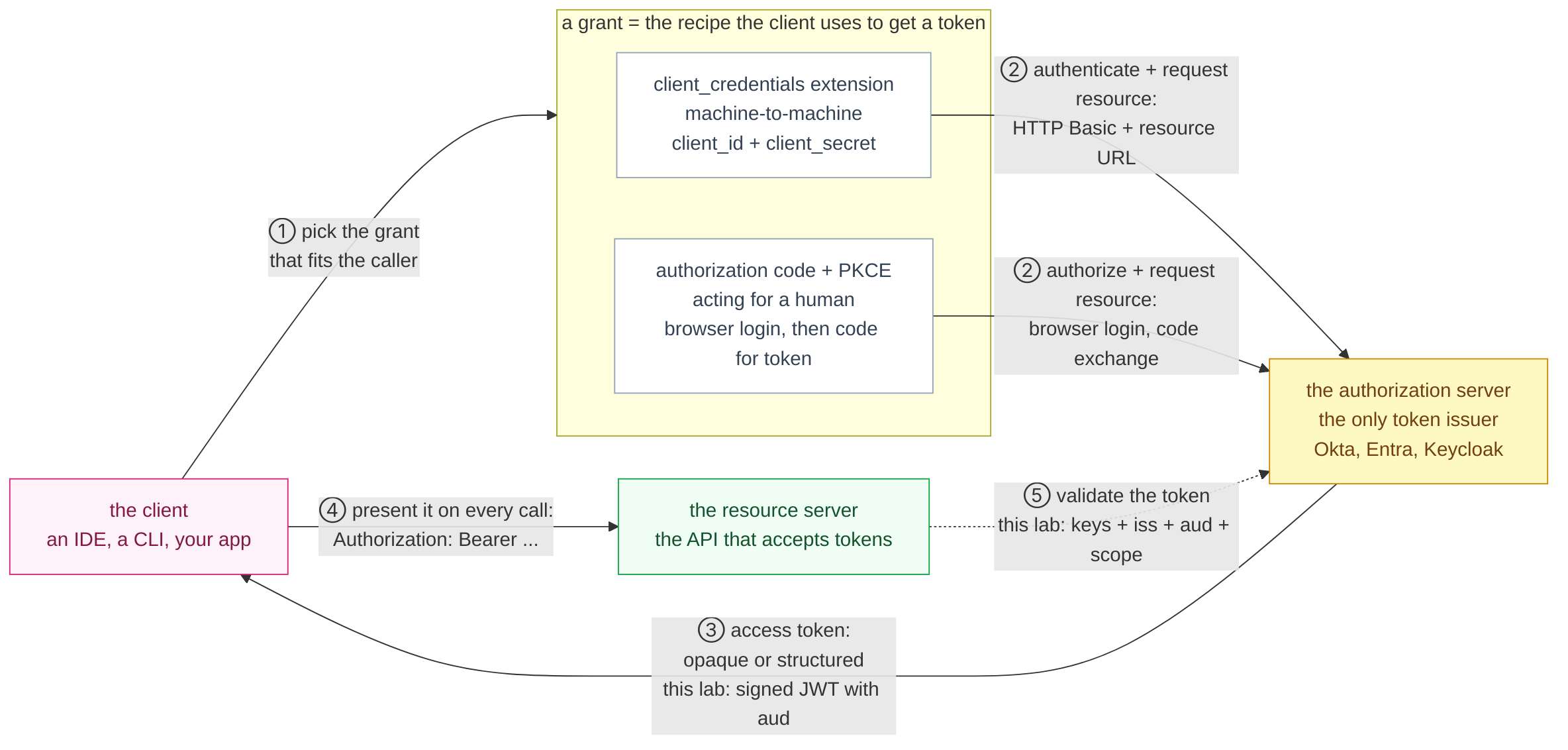

The whole mechanism in five steps. Everything else in OAuth is detail hanging off these arrows.

Three terms carry the rest of this module:

• Grant - the recipe the client uses to obtain a token. MCP's core interactive flow is authorization code + PKCE, where the client acts for a human through browser login and exchanges a code. The optional MCP OAuth Client Credentials extension adds client_credentials for machine-to-machine callers that authenticate with their own ID and secret; that is the extension this shell lab uses.
• Access token - a credential that may be opaque or structured. This lab uses a signed JWT: three base64url chunks containing a header, claims payload, and signature. Its payload is readable, so never put secrets in claims; validation is what prevents accepted forgery.
• Scope - a permission category stamped into the token ("may read notes"), so one token can be broad or narrow without the API guessing.

And the punchline: the MCP spec builds on OAuth. It pins each role down: your MCP server is the API - the resource server - and the token issuer is your IdP - the authorization server. OAuth 2.1 defines four roles, and the MCP authorization spec pins MCP onto three of them:

Two things are worth saying up front, because they are the parts people get wrong when moving from REST to MCP:

• The MCP server is not the token issuer. It validates tokens and tells clients where to get them. Issuing belongs to the authorization server - the same separation as "your API vs your IdP".
• Authorization in MCP is optional. If you use it with Streamable HTTP, follow the MCP OAuth profile rather than inventing a token flow. Local stdio servers normally receive credentials through their process environment instead of implementing this HTTP authorization flow.

Meet Keycloak: the realm behind the lab

Every lab needs something to play the authorization server. In production that role belongs to whatever identity provider your organization runs - Okta, Entra ID, Auth0. This module uses Keycloak, the open-source one, for a practical reason: it boots as a single container, and its entire configuration is a file you can read.

The first concept is the realm. Keycloak partitions its universe into realms - fully isolated tenants, each with its own users, clients, scopes, and signing keys. Ours is named mcp-lab, and that single word explains the shape of every URL you will hit in this module: each realm is served under /realms/<name>, so everything below hangs off http://127.0.0.1:8081/realms/mcp-lab/....

The realm itself was provisioned the declarative way: at startup, Keycloak imported a JSON document - Keycloak's provisioning format, where the whole tenant is one file and the admin console is just a GUI over it. It is sitting on disk in the lab; look inside:

jq '{realm, clients: [.clients[].clientId], scopes: [.clientScopes[].name]}' \
  ~/mcp-lab/keycloak/realm.json

{
  "realm": "mcp-lab",
  "clients": [
    "notes-cli",
    "rogue-cli"
  ],
  "scopes": [
    "notes.access"
  ]
}

One realm, one scope, two clients - and every behavior you will observe in this module follows from these few lines.

Keep this file in mind as you work through the module: every artifact Keycloak serves you - the discovery documents, the token, the login page - is a function of these declarations.

The whole dance on one map

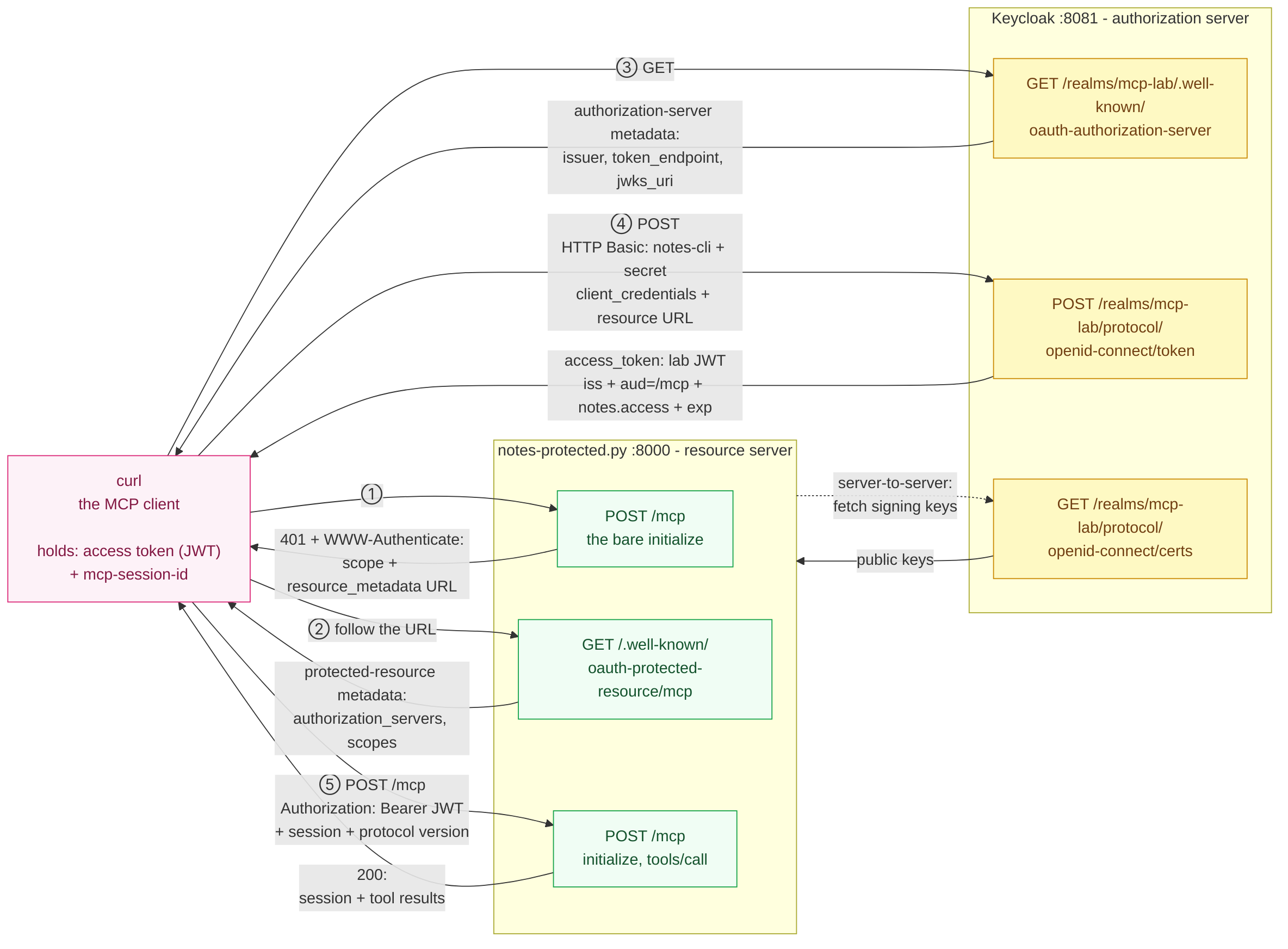

Before walking it edge by edge, here is the entire module on one diagram: every URL involved, which authorization values each call carries, and what comes back. It looks dense now; by the time you finish "The Bearer session" every client-facing edge will be something you typed; the dotted JWKS edge is the verifier working for you. Come back here whenever you lose the plot.

Five hops: two against the MCP server's discovery URLs, two against Keycloak (metadata, then the token endpoint), and the final Bearer-protected protocol session.

Here is the cast of authorization and session values - which you type, which you receive, and where each travels:

The pattern worth internalizing: two credentials authenticate the client (id + secret), one authorizes each call (the token), and one carries protocol state (the session ID). Keeping those three jobs apart resolves most of the confusion around MCP auth - and you will see all three headers coexist on the very first authorized request.

First contact: the 401 that carries a map

Start the protected server in Terminal 1 (Keycloak is already up - the playground started it for you; verify with the one-liner in a moment):

cd ~/mcp-lab
uv run --with 'fastmcp==4.0.0' python notes-protected.py

INFO     Starting MCP server 'notes' with transport 'http' on http://127.0.0.1:8000/mcp
INFO:     Uvicorn running on http://127.0.0.1:8000 (Press CTRL+C to quit)

In Terminal 2, repeat module 1's very first curl - the bare initialize:

curl -s -i -X POST http://127.0.0.1:8000/mcp \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json, text/event-stream' \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"curl","version":"1.0"}}}' \
  | grep -iE '^(HTTP|www-authenticate)'

HTTP/1.1 401 Unauthorized
www-authenticate: Bearer scope="notes.access", resource_metadata="http://127.0.0.1:8000/.well-known/oauth-protected-resource/mcp"

No token, no protocol. But look at what the 401 carries: a machine readable challenge. This is RFC 6750's WWW-Authenticate header, and MCP's spec requires servers to use it to point the client at authorization metadata. Two fields matter:

• scope="notes.access" - the permission set this resource expects.
• resource_metadata=... - a URL where a complete, machine-readable description of this resource lives.

In a REST world a 401 usually says "see docs" and a human reads them. In MCP the 401 itself is the documentation, and the client is expected to follow it. Which is our next step.

The discovery chain

Follow the pointer the challenge gave you:

curl -s http://127.0.0.1:8000/.well-known/oauth-protected-resource/mcp \
  | tee ~/mcp-lab/prm.json | jq .

{
  "resource": "http://127.0.0.1:8000/mcp",
  "authorization_servers": [
    "http://127.0.0.1:8081/realms/mcp-lab"
  ],
  "scopes_supported": ["notes.access"],
  "bearer_methods_supported": ["header"]
}

This is Protected Resource Metadata (RFC 9728) - the document that says: I am this resource; get your tokens from these authorization servers; these are the scopes I accept. An authorization-enabled MCP HTTP server publishes this document so the client can parse WWW-Authenticate, fetch the metadata, and pick an authorization server.

Then ask the authorization server about itself:

curl -s http://127.0.0.1:8081/realms/mcp-lab/.well-known/oauth-authorization-server \
  | tee ~/mcp-lab/as-metadata.json | jq '{issuer, token_endpoint, grant_types_supported: [.grant_types_supported[0], .grant_types_supported[1]]}'

{
  "issuer": "http://127.0.0.1:8081/realms/mcp-lab",
  "token_endpoint": "http://127.0.0.1:8081/realms/mcp-lab/protocol/openid-connect/token",
  "grant_types_supported": [
    "authorization_code",
    "client_credentials"
  ]
}

Authorization Server Metadata (RFC 8414) - the IdP's own machine readable spec sheet: where to send users to log in, where to POST for tokens, which grants it speaks, which signing keys it publishes (a jwks_uri you will meet in a moment). If you have fetched an OpenAPI document from an API, this is the same genre of artifact, one layer up.

Minting a token

Time to actually get a token. For this headless shell lab, use the optional MCP OAuth Client Credentials extension: a machine-to-machine flow where the client authenticates with its own ID and secret, with no human in the loop. It is not MCP's core interactive authorization flow. The Keycloak realm has a notes-cli service account, Keycloak's switch for allowing this client to use client_credentials.

TOK=$(curl -s -X POST http://127.0.0.1:8081/realms/mcp-lab/protocol/openid-connect/token \
  -u notes-cli:lab-secret \
  -d 'grant_type=client_credentials' \
  --data-urlencode 'resource=http://127.0.0.1:8000/mcp' \
  | jq -r .access_token)
echo "token head: ${TOK:0:24}..."

token head: eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwi...

eyJ... identifies the signed JWT format Keycloak uses in this lab. OAuth access tokens are not universally JWTs, but this one can be decoded locally (the dot-separated middle section is the base64url claims payload):

echo "$TOK" | jq -R 'split(".")[1] | gsub("-"; "+") | gsub("_"; "/") | @base64d | fromjson'

{
  "iss": "http://127.0.0.1:8081/realms/mcp-lab",
  "sub": "ccb76ae2-...",
  "typ": "Bearer",
  "azp": "notes-cli",
  "aud": "http://127.0.0.1:8000/mcp",
  "scope": "notes.access",
  "exp": 1788268514,
  "iat": 1788268214
}

Read the claims the way you would read a letter's envelope:

• iss - who issued it (must match the issuer you just fetched).
• azp - the authorized party: which client it was minted for.
• scope - what it is allowed to do; note notes.access, the scope the resource server demanded.
• exp/iat - expiry timestamps; this token lives 300 seconds.
• aud - the audience: which resource(s) the token is bound to.

About aud: MCP requires access tokens to be bound to their intended resource. RFC 8707 defines the resource request parameter, which is why the token request includes the exact MCP URL. Keycloak 26.3 accepts that extra parameter but does not dynamically turn it into aud here. The realm therefore uses a static audience protocol mapper on each client. JWTVerifier independently checks that aud equals MCP_RESOURCE. Scope and audience answer different questions: having notes.access does not make a token intended for another API acceptable.

The Bearer session

Now the handshake again, this time wearing the token. Note that authorization lives on every request - the session header from module 1 and the Authorization header coexist; one is protocol state, the other is access control:

SID=$(curl -sD- -o /dev/null -X POST http://127.0.0.1:8000/mcp \
  -H "Authorization: Bearer $TOK" \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json, text/event-stream' \
  -d '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"curl","version":"1.0"}}}' \
  | grep -i '^mcp-session-id:' | tr -d '\r' | cut -d' ' -f2)
curl -s -o /dev/null -X POST http://127.0.0.1:8000/mcp \
  -H "Authorization: Bearer $TOK" \
  -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
  -H "mcp-session-id: $SID" \
  -H 'MCP-Protocol-Version: 2025-06-18' \
  -d '{"jsonrpc":"2.0","method":"notifications/initialized"}'
curl -s -X POST http://127.0.0.1:8000/mcp \
  -H "Authorization: Bearer $TOK" \
  -H 'Content-Type: application/json' -H 'Accept: application/json, text/event-stream' \
  -H "mcp-session-id: $SID" \
  -H 'MCP-Protocol-Version: 2025-06-18' \
  -d '{"jsonrpc":"2.0","id":2,"method":"tools/call","params":{"name":"add_note","arguments":{"text":"authenticated over the wire","tag":"authorized"}}}' \
  | grep '^data:' | cut -c7- | jq '.result.structuredContent'

{
  "saved": 1,
  "total": 1
}

Full circle from module 1 - the same initialize/notify/call choreography

• now gated by a token that was minted through a discovery chain you walked by hand.

Rejecting wrong tokens

What does the server do with a token that is structurally valid but not for it? The lab realm has a second client, rogue-cli, minting perfectly fine JWTs from the same issuer:

TOK2=$(curl -s -X POST http://127.0.0.1:8081/realms/mcp-lab/protocol/openid-connect/token \
  -u rogue-cli:rogue-secret \
  -d 'grant_type=client_credentials' \
  --data-urlencode 'resource=http://127.0.0.1:8000/mcp' \
  | jq -r .access_token)
echo "$TOK2" | jq -R 'split(".")[1] | gsub("-"; "+") | gsub("_"; "/") | @base64d | fromjson | {aud, scope}'
curl -s -i -X POST http://127.0.0.1:8000/mcp \
  -H "Authorization: Bearer $TOK2" \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json, text/event-stream' \
  -d '{"jsonrpc":"2.0","id":3,"method":"initialize","params":{"protocolVersion":"2025-06-18","capabilities":{},"clientInfo":{"name":"curl","version":"1.0"}}}' \
  | grep -iE '^(HTTP|www-authenticate)'

{
  "aud": "https://rogue.example/api",
  "scope": "notes.access"
}
HTTP/1.1 401 Unauthorized
www-authenticate: Bearer error="invalid_token", ... scope="notes.access", resource_metadata="http://127.0.0.1:8000/.well-known/oauth-protected-resource/mcp"

Signature and issuer check out, and the token even has the exact same notes.access scope. The server refuses it because aud=https://rogue.example/api, not MCP_RESOURCE. That isolates the audience check rather than pretending scope substitutes for resource binding. FastMCP reports this observed audience mismatch as a 401 with error="invalid_token" and the discovery pointers. insufficient_scope would instead describe a valid token for this resource that lacks the required scope.

What is actually being verified under the hood? Three checks, in order:

1. Signature - fetched from Keycloak's jwks_uri (the published signing keys) and verified against the JWT header's alg.
2. Claims - iss must equal the expected issuer; exp must be in the future; required scope must be present.
3. Binding - aud must name this resource server.

That is the same triad any JWT-protected REST API implements - via your auth middleware, your gateway, or your framework. The difference is that MCP standardizes the handshake around it: where the client learns the rules, what the 401 must contain, and what a smart client does next (re-discover, re-authenticate, retry).

The flow real hosts use: authorization code + PKCE

The optional client_credentials extension suits machines. MCP's interactive flow for a host (an IDE or chat app acting for a human) is authorization code with PKCE. The command below demonstrates only the first browser-flow hop: constructing the authorization request and receiving Keycloak's login page. It does not complete a login or mint a token.

VERIFIER=$(openssl rand -base64 32 | tr '+/' '-_' | tr -d '=\n')
CHALLENGE=$(printf '%s' "$VERIFIER" | openssl dgst -sha256 -binary | openssl base64 -A | tr '+/' '-_' | tr -d '=')
STATE=$(openssl rand -hex 32)
curl -s -D- -o /dev/null \
  "http://127.0.0.1:8081/realms/mcp-lab/protocol/openid-connect/auth?client_id=notes-cli&response_type=code&redirect_uri=http%3A%2F%2F127.0.0.1%3A8000%2Fcallback&scope=notes.access&resource=http%3A%2F%2F127.0.0.1%3A8000%2Fmcp&code_challenge=$CHALLENGE&code_challenge_method=S256&state=$STATE" \
  | head -1

HTTP/1.1 200 OK

That 200 is Keycloak's login page - in a real host this HTML renders in a browser window, the user signs in, and Keycloak redirects to your redirect_uri with ?code=...&state=.... The host then redeems the code at the token_endpoint (the same POST shape as before, plus grant_type=authorization_code, code=..., code_verifier=$VERIFIER).

The two ingredients worth understanding, because they are pure security engineering rather than ceremony:

• PKCE (proof key for code exchange): the client creates a secret ($VERIFIER) it keeps, and sends only its SHA-256 hash ($CHALLENGE, the S256 you just computed) with the authorization request. The token request must present the original verifier, which only the true requester holds. This neutralizes the classic "someone intercepts your authorization code" attack - including the one MCP is specifically exposed to, because an MCP client on a developer machine often has no server-side secret to guard the code with.
• state - a random value round-tripped through the redirect so the client can prove the callback is a response to its own request, not a forged one. Cross-site request forgery, OAuth edition.

The resource parameter from the audience discussion rides along in both the authorization request and code-exchange token request. It tells a supporting authorization server which MCP resource should receive the token. As above, this lab's Keycloak import uses a static audience mapper; the parameter remains present because an MCP client must make the resource request explicit.

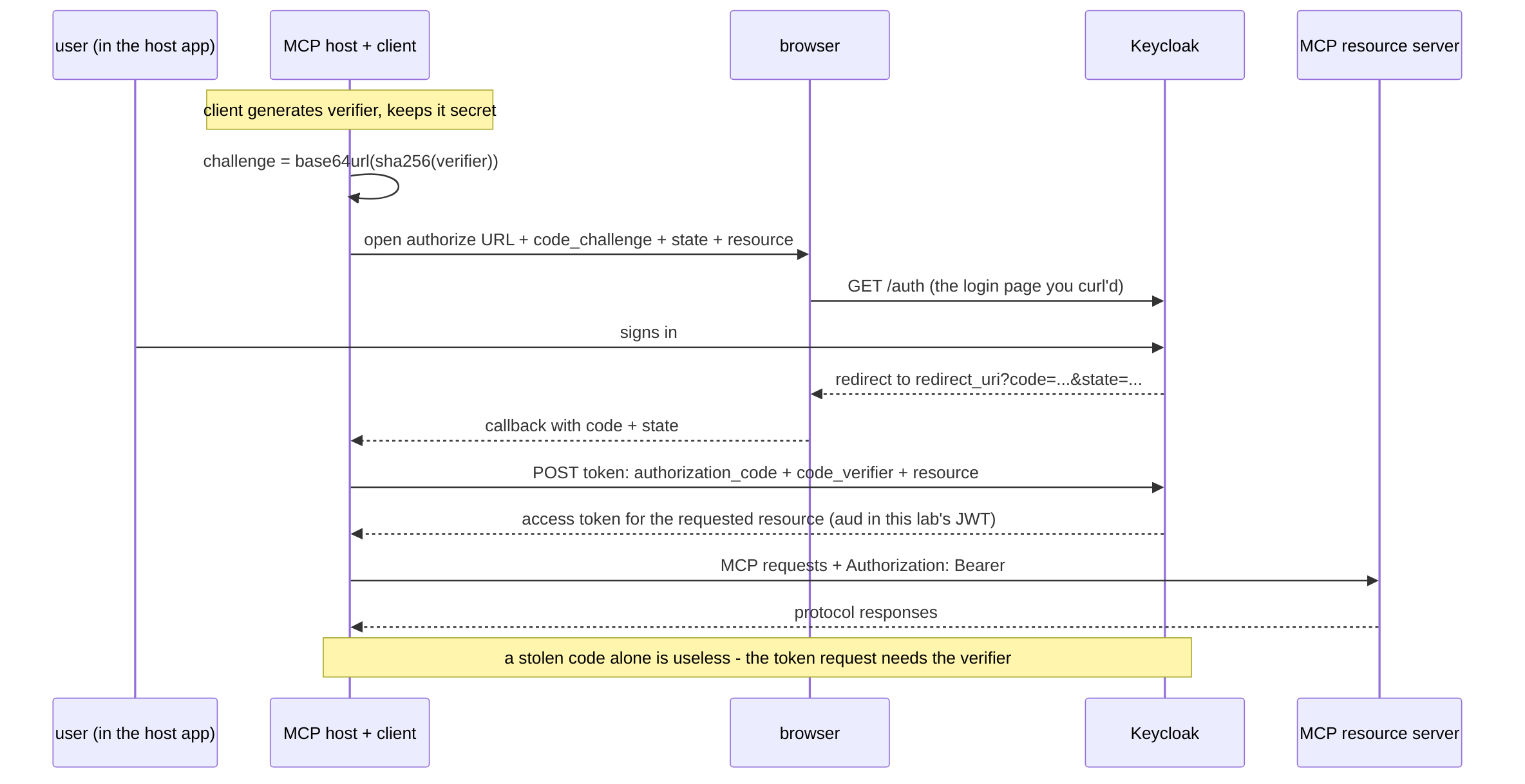

The interactive flow end to end. Everything in the right half of the diagram you already curl'd by hand in this module.

What the spec is defending against

The MCP security best-practices document reads like a REST security checklist that learned about language models. Four items belong in your head, because each one has bitten real deployments. The hands-on path is complete; expand this catalog when you are ready to go deeper.

Where gateways fit

There is a second deployment shape you will meet in production: the MCP server itself stays as-is, and an identity-aware proxy sits in front of it, performing the OAuth 2.1 handshake and per-tool authorization policy before traffic reaches your code. The platform has a dedicated hands-on course on exactly that shape - Pomerium as the gateway, with per-tool policies, upstream token injection, and hosted MCP servers:

Securing MCP Servers and MCP Apps with Pomerium

The division of labor is worth internalizing: this module put the resource-server duties inside your server (the spec's native shape); that course delegates them to infrastructure in front of it. Both are legitimate; pick per team, not per fashion.

Summary

You took Module 2's complete notes server and added one precise slice of MCP authorization: the 401 challenge, RFC 9728 and RFC 8414 discovery, the optional client-credentials extension, JWT signature/issuer/audience/ scope validation, and a Bearer-protected protocol session. You also proved that a same-scope token for another audience is rejected, walked the interactive PKCE flow only as far as its login-page hop, and reviewed four additional threats. The opening map now corresponds to commands you ran by hand.

The one-liner vocabulary, for your next design review:

Where to next?

• Watch it run: MCP Fundamentals: Observability - protocol-level logging and OpenTelemetry traces, which are how you prove what authenticated callers actually did.
• The specification's authorization chapter, which you have now lived: modelcontextprotocol.io - Authorization
• The gateway course for the proxy shape: Securing MCP Servers and MCP Apps with Pomerium
