Scope

This tutorial will give readers an insight on how to configure podman CLI to their preferences.

This tutorial will help readers configure podman CLI to:

• Pull images from some specific registries (internal & external)
• Use specific OCI Runtimes
• Make each container spin up with specific attributes

Configuration Files Language & Examples

All of Podman's configuration files use the TOML language.

You can find distribution specific example TOML configuration files, under the following directory:

/usr/share/containers/
/etc/containers/

Users can use these configurations files as example reference or template to configure podman instances.

For rootless podman we will place our configuration files under the following directory:

/home/laborant/.config/containers

Let's create the directory first:

mkdir -p ~/.config/containers

Registries Configuration

We can configure our podman CLI to pull container images only from specific registries and block others.

A potential scenario, is to avoid any rate-limit hits from public registries and pull from an internal mirrored-cache registry.

Scenario

We need work on a system where we are allowed to pull only from:

• quay.io
• ghcr.io

But we are not allowed to pull from:

• docker.io

We can however pull Docker Hub's container images from our internal Registry:

• registry.iximiuz.com

Basic Setup

Create a registries.conf TOML file in our ~/.config/containers directory.

touch ~/.config/containers/registries.conf

Pulling Images with Short-Names

We will add the the unqualified-search-registries list to let podman CLI search for container images without explicitly mentioned the whole registry name

cat > ~/.config/containers/registries.conf << _EOF
unqualified-search-registries = [
  "docker.io",
  "ghcr.io",
  "quay.io",
]
_EOF

Verify using:

podman info | yq '.registries'

This makes it easy to pull images without mentioning the complete registry name. podman will try to best match the image with a potential registry and prompt the user the fully-qualified container image name.

Try pulling busybox:

podman pull busybox:latest # from docker.io

The prompt provides you the option of try to pulling the busybox:latest container image either from docker.io, ghcr.io, or quay.io.

~/.cache/containers/short-name-aliases.conf

Try pulling curl/curl:latest from quay.io:

podman pull curl/curl:latest # select quay.io in prompt

Blocking a Registry / Pull from Mirror Internal Registry

Based on the scenario, we should not be able to pull directly from docker.io, but we will pull the same image from the internal registry (registry.iximiuz.com).

Update the registries.conf with the following TOML table called registry:

cat >> ~/.config/containers/registries.conf << _EOF
[[registry]]
location = "docker.io"
blocked = true
_EOF

Try to pull nginx:latest from docker.io now:

podman pull nginx:latest # select docker.io

And you will see that you are not allowed to pull image directly from docker.io.

Let's copy the nginx:latest to registry.iximiuz.com under the docker.io prefix using crane tool.

crane cp \
  --platform=linux/amd64 \
  docker.io/library/nginx:latest \
  registry.iximiuz.com/docker.io/library/nginx:latest

We want the Developer Experience to be the same as if we were pull the image from Docker Hub and not explicitly mention the internal registry's name in our image.

For this to happen, we need to configure the [[registry.mirror]] property, to make sure podman pull knows to substitute the registry name with the internal registry name a prefix.

Update the configuration as follows:

cat >> ~/.config/containers/registries.conf << _EOF
[[registry.mirror]]
location = "registry.iximiuz.com/docker.io"
_EOF

The final configuration TOML file would look like:

# registries.conf
unqualified-search-registries = [
  "docker.io",
  "ghcr.io",
  "quay.io",
]
[[registry]]
location = "docker.io"
blocked = true
[[registry.mirror]]
location = "registry.iximiuz.com/docker.io"

You can verify using:

podman info | yq '.registries'

Try pulling the image again and we will succeed this time:

podman pull nginx:latest # select docker.io

You can verify that the nginx image still has original registry name (docker.io/library) and not the internal registry's name (registry.iximiuz.com):

podman images

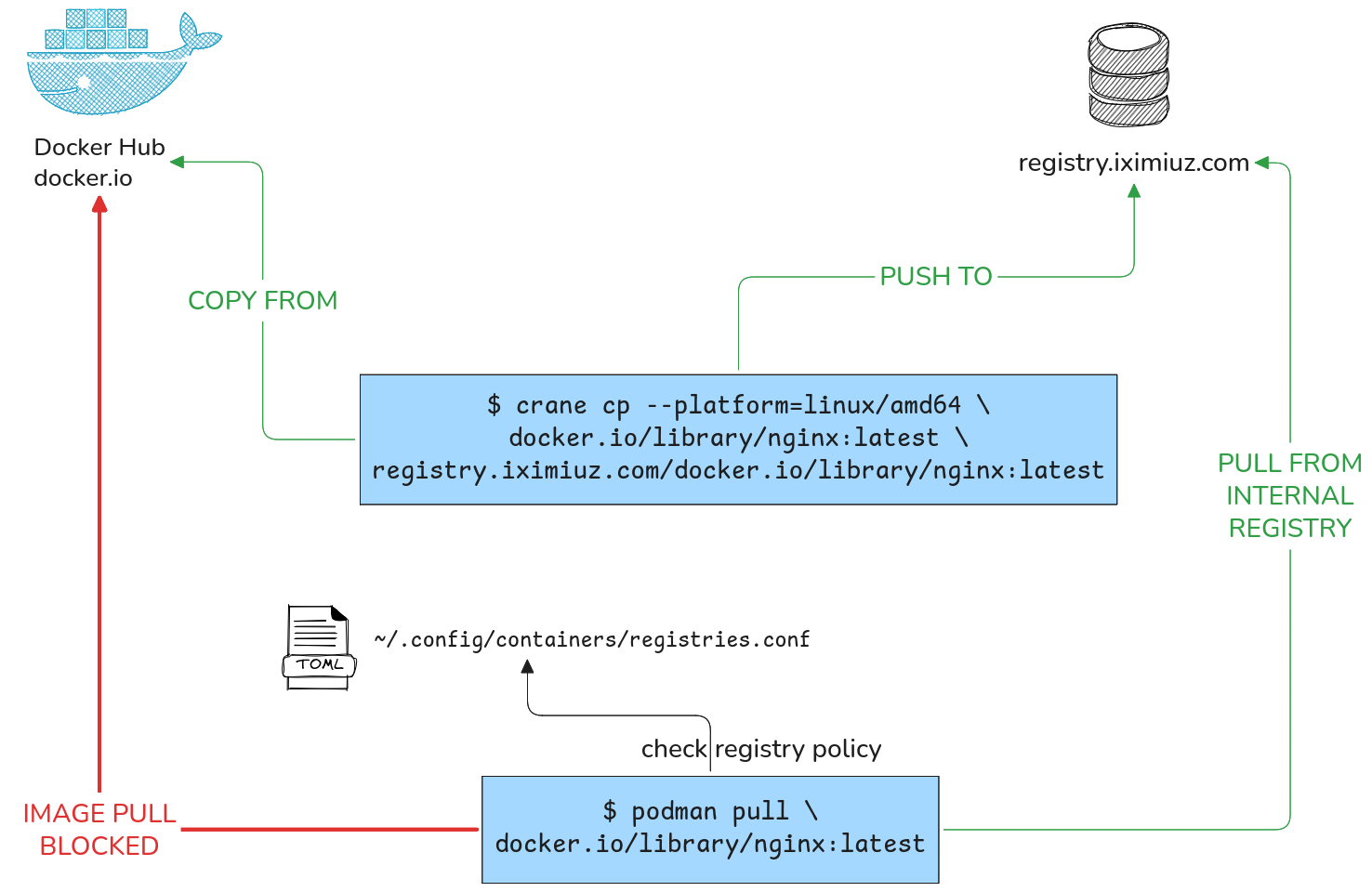

podman pull will block pulling nginx from Docker Hub, but will be pulled from internal registry using mirroring

You can now maintain an internal registry with all required images to avoid rate-limiting pulls or avoid pulling potentially insecure container images to your system using crane and Podman's registry policies.

Various OCI Runtimes

We can spin up containers with different OCI runtimes by being explicit or configuring a new default runtime for the podman CLI using a TOML file.

The default OCI runtime used by podman, is crun:

podman info | yq '.host.ociRuntime'

We can use the --runtime flag to explicitly use a specific OCI runtime:

podman --runtime {runc,youki,kata,gvisor....} run -d IMAGE:Version

OCI Runtime: runc

We can use the runc OCI runtime to spin containers up.

Let's download it first:

wget \
  https://github.com/opencontainers/runc/releases/download/v1.5.1/runc.amd64 \
  -O runc \
  && chmod +x runc

Verify using:

./runc --help

Let podman CLI know where the runc binary path exists to explictiy avoid mentioning the full path everytime by creating a runtimes.conf file under: ~/.config/containers/containers/containers.conf.d:

mkdir -p ~/.config/containers/containers.conf.d

Add the following content:

cat > ~/.config/containers/containers.conf.d/runtimes.conf << _EOF
[engine.runtimes]

runc = [
  "/home/laborant/runc"
]
_EOF

Spin up a nginx container using runc:

podman --runtime runc \
  run -d --rm \
  --name=runc-nginx \
  nginx:latest

Verify that the container was spun up with runc:

podman inspect runc-nginx -f '{{ .OCIRuntime }}'

OCI Runtime: youki

We can also use the Rust-written youki OCI Runtime to spin up containers.

Download the binary:

wget \
  https://github.com/youki-dev/youki/releases/download/v0.7.0/youki-0.7.0-$(uname -m)-musl.tar.gz \
  -O youki.tgz

Extract a binary from the tarball:

tar xvf youki.tgz youki && chmod +x youki

Verify using:

./youki --help

Configure the runtime path for podman CLI to leverage:

cat >> ~/.config/containers/containers.conf.d/runtimes.conf << _EOF
youki = [
  "/home/laborant/youki"
]
_EOF

Spin up an nginx container with youki runtime:

podman --runtime youki \
  run -d --rm \
  --name=youki-nginx \
  nginx:latest

Verify that the container was spun up with youki:

podman inspect youki-nginx -f '{{ .OCIRuntime }}'

Setting a Different Default OCI Runtime

We can use a runtime.conf to set the default OCI runtime other than crun:

cat > ~/.config/containers/containers.conf.d/runtime.conf << _EOF
[engine]
runtime = "youki"
_EOF

Verify using:

podman info | yq '.host.ociRuntime'

Any subsequent container will be spun up with youki.

Container Customization

Similar to the [engine] configuration parameter, We use the [containers] property to create containers with some sensible run-time defaults. We will look at the following scenarios:

• Injecting custom environment variables
• Container hostname should be same as the container's name

Setting a Custom Environment Variable for All Containers

Let's assume we wish to setup the following environment variable for all containers that will be spun up from now onwards:

PLAYGROUND=iximiuz-podman

We want to AVOID running containers everytime with an explicit env var set call:

podman run -e PLAYGROUND=iximiuz-podman ...

To do this we create a env.conf with the following configuration:

cat > ~/.config/containers/containers.conf.d/env.conf << _EOF
[containers]
env = [
  "PLAYGROUND=iximiuz-podman"
]
_EOF

Spin up a container:

podman run --rm -d \
  --name=new-nginx \
  nginx:latest

Verify using:

podman exec new-nginx printenv | grep "PLAYGROUND"

Every new container spun up post configuration of the env.conf will have PLAYGROUND=iximiuz-podman injected into it via podman.

Set Hostname as Same as Container's Name

The previously running new-nginx's hostname will be:

podman exec new-nginx hostname
<first 12 characters of the container's ID>

We can set the container's hostname to be same as its name and avoid explicitly using everytime

podman run --hostname=<container_name> --name=<container_name> ...

Create a hostnames.conf:

cat > ~/.config/containers/containers.conf.d/hostnames.conf << _EOF
[containers]
container_name_as_hostname = true
_EOF

Spin up a container:

podman run -d --name=hostname-check-nginx nginx:latest

Verify using:

podman exec hostname-check-nginx hostname

Inference

Customize your rootless podman, to your preferences and liking without having to restart any daemon or logging-off from a session using readable TOML files.

There are lot of fine-tuning configurations for the Podman Engine as well as the containers one can setup by relying on the /usr/share/containers/containers.conf file as an example.

Your ~/.config/containers files can be part of your DOTfiles repo and you can setup your podman CLIs in different systems and environments without breaking a sweat!
