Container Internals - A Hands-On Guide

Check out the full playground Container from Scratch

Docker containers aren't magic—they're Linux processes with restricted views of system resources. In this hands-on tutorial, we'll build a container from scratch to understand what happens under the hood. In the end we will have an automation script that can build a container with networking capability and tear down its namespaces.

Get the Debian Image Filesystem

First, we'll combine the Debian filesystem layers into a single tarball and extract it to serve as the root filesystem (rootfs), which will be stored at /opt/containers/rootfs.

A container image is made up of multiple stacked layers, plus a writeable layer that tracks any changes you make while the container is running. To get a usable filesystem, these layers need to be flattened ("squashed") into one — the result is a tarball that gets extracted into the container's rootfs.

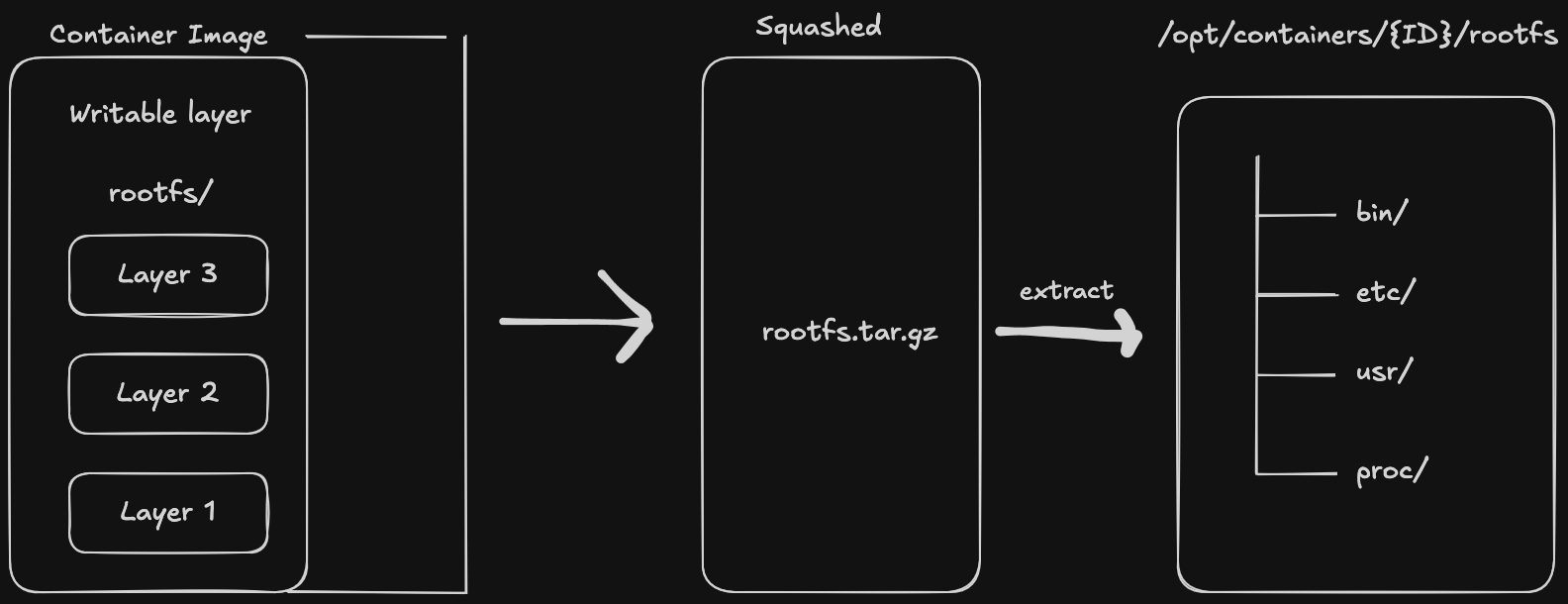

Container image filesystem tar structure

The extracted tarball showing the flattened container filesystem layers.

Every container needs a root filesystem. We'll extract a Debian image using crane - a tool used for managing images:

# Upgrade system
sudo dnf --refresh -y upgrade

# Install crane
VERSION=$(curl -s https://api.github.com/repos/google/go-containerregistry/releases/latest | grep tag_name | cut -d'"' -f4)
curl -sL "https://github.com/google/go-containerregistry/releases/download/${VERSION}/go-containerregistry_Linux_x86_64.tar.gz" | tar -xz crane
sudo mv crane /usr/local/bin/

# Create container directory structure
CONTAINER_DIR=/opt/containers
ROOTFS_DIR=${CONTAINER_DIR}/rootfs
mkdir -p $ROOTFS_DIR

# Export Debian image and extract to rootfs
sudo crane export debian:stable-slim debian-rootfs.tar
sudo tar -xvf debian-rootfs.tar -C $ROOTFS_DIR

Verify the filesystem:

ls /opt/container-1/rootfs/
cat $ROOTFS_DIR/etc/os-release

The rootfs directory showing the Debian filesystem structure.

Create Container Configuration Files

These files are container-specific settings, so we create them in $CONTAINER_DIR (not in rootfs) and bind-mount them at runtime.

Create /etc/hosts:

sudo vim $CONTAINER_DIR/hosts

127.0.0.1 localhost container-1
::1 localhost ip6-localhost ip6-loopback

Set hostname:

sudo vim $CONTAINER_DIR/hostname

container-1

Copy DNS configuration:

sudo cp /etc/resolv.conf $CONTAINER_DIR/resolv.conf

Create Namespaces

Namespaces provide the isolation layer. Create a new set of isolated namespaces:

sudo unshare --mount --pid --net --cgroup --uts --fork --propagation slave bash

This creates an isolated environment with separate:

mount: Filesystem mount points
pid: Process IDs (container's PID 1 is its init)
net: Network stack
cgroup: Control groups
uts: Hostname and domain name

The --fork flag is important here because unshare itself would otherwise become PID 1 inside the new namespace. By using --fork, unshare forks a child process — in this case bash — which then becomes PID 1. This matters because containers expect PID 1 to be their own process (the init process), not the host tool that launched them

Verify namespace isolation:

findmnt -o TARGET,PROPAGATION,FSTYPE
readlink /proc/self/ns/{mnt,pid,net,uts,cgroup}

Comparing namespace IDs between host and container

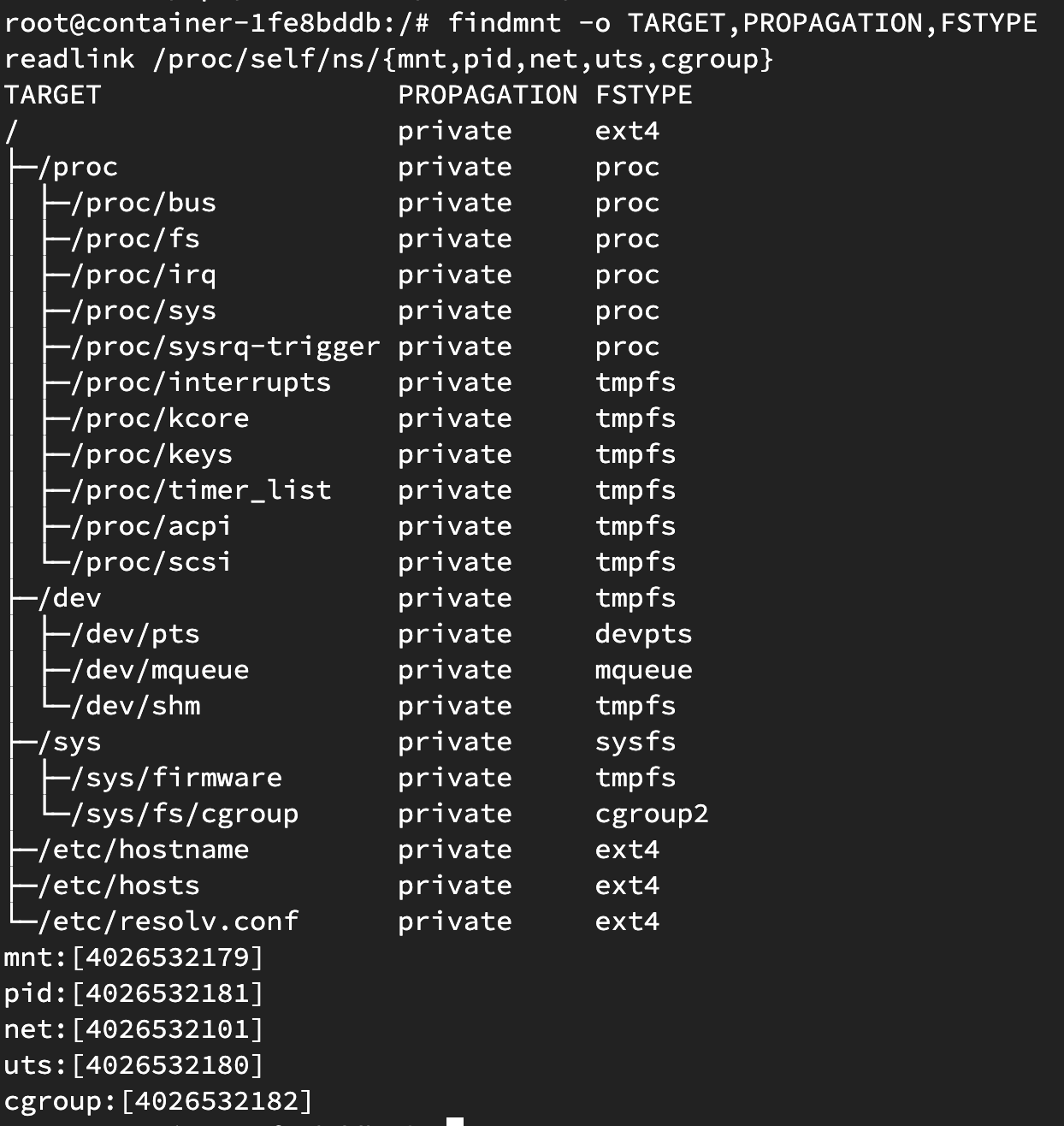

Container namespaces

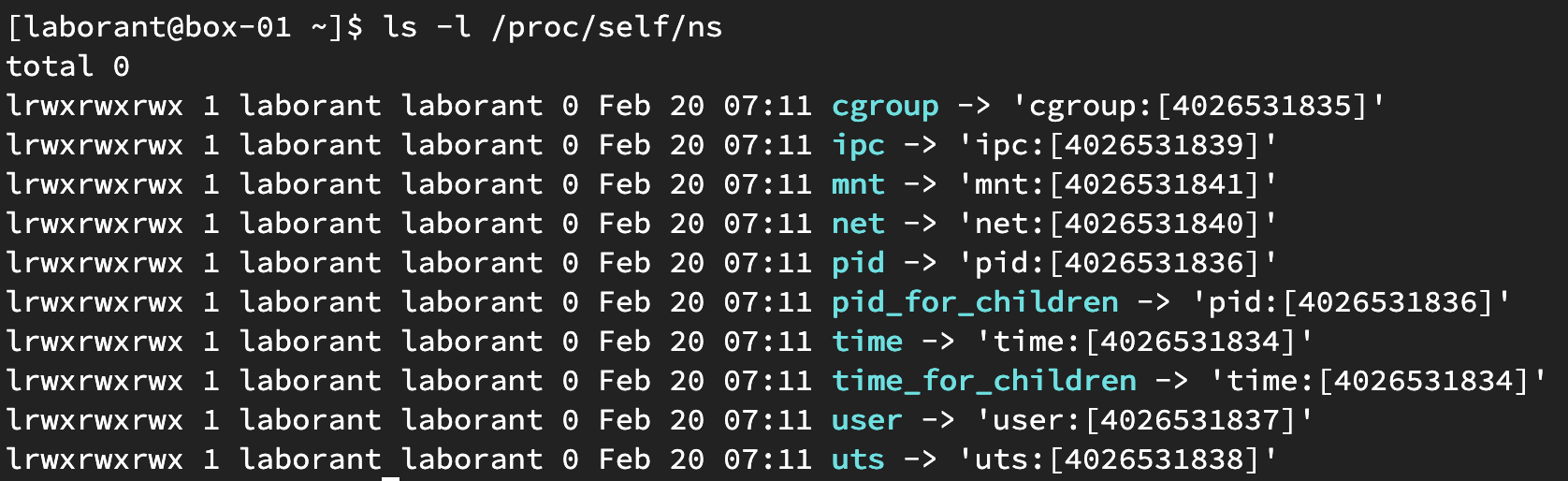

Host namespaces

Namespace IDs inside the unshared bash differ from the host system.

The --propagation slave flag prevents mount changes in the child namespace from propagating to the parent.

Set Up Networking

Create a bridge network to connect the container to the host:

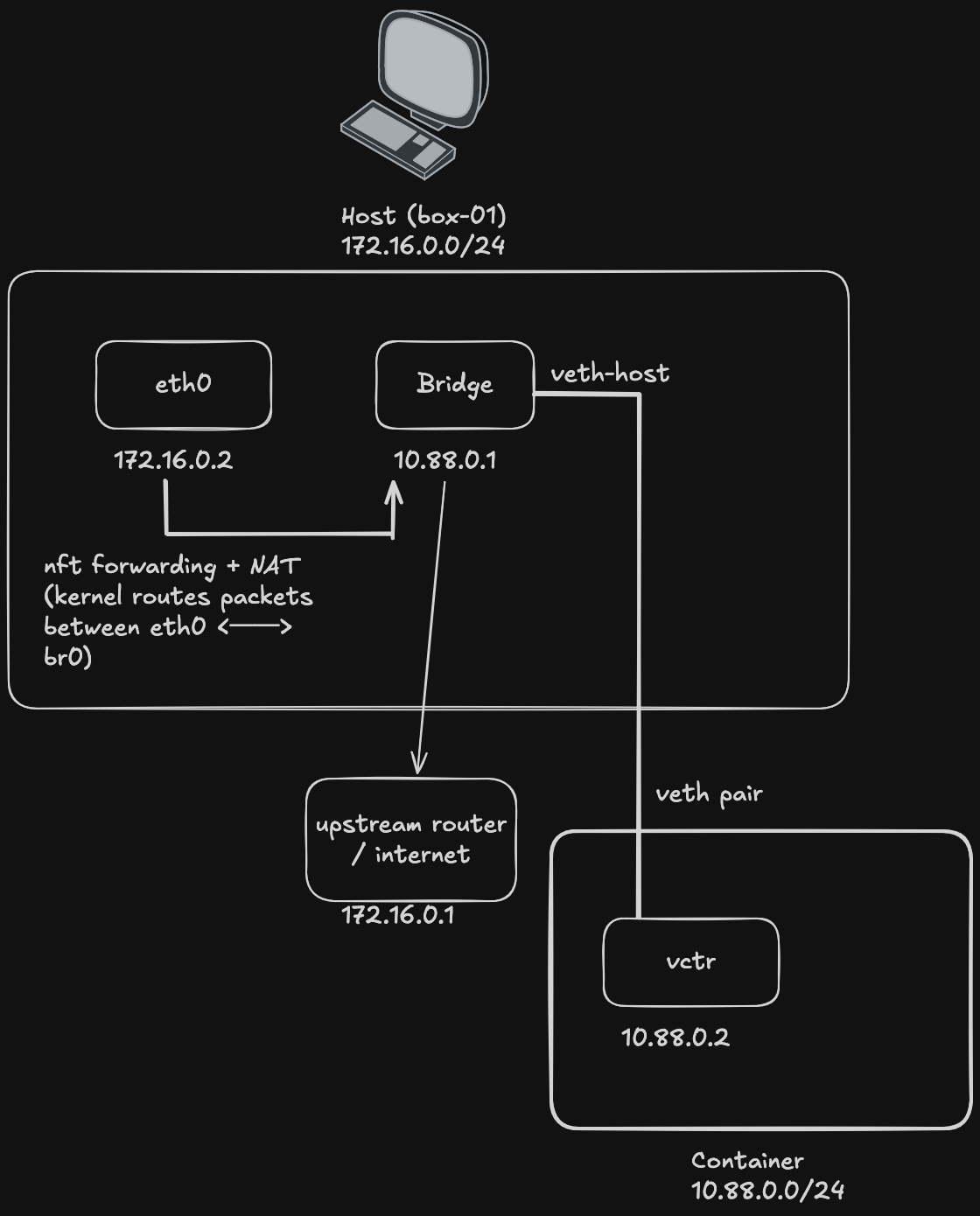

Bridge network diagram showing container connected to host via veth pair

Bridge network with veth pair connecting container to host.

# Create bridge
sudo ip link add name br0 type bridge
sudo ip addr add 10.0.0.1/24 dev br0
sudo ip link set br0 up

# Create veth pair
sudo ip link add veth0 type veth peer name veth1

# Configure veth0 (host side)
sudo ip link set veth0 master br0
sudo ip link set veth0 up

Putting It All Together

Now let's combine all the pieces into a complete container management script. The script will:

Create a bridge for container networking
Generate a container ID for unique identification
Set up the root filesystem from a container image
Configure networking with named network namespaces and veth pairs
Isolate the container with proper mount points and device nodes
Clean up resources when stopping the container

Key Features

The script uses several important Linux features:

Named Network Namespaces: Instead of creating a new empty network namespace and trying to move veth interfaces into it, we create a named namespace (ip netns add) and then enter it with nsenter. This preserves our configured veth interface.

Pivot Root: The pivot_root system call safely switches the root filesystem from the host to the container's rootfs, placing the old root at .oldroot so we can unmount it.

Pseudo Filesystems: A proper container needs several kernel virtual filesystems mounted:

/proc - Process information
/dev - Device nodes with proper permissions
/sys - Kernel and hardware information
/sys/fs/cgroup - Control groups for resource management

Hardening the Container

A real container runtime applies security hardening. Our script:

Makes proc subdirectories read-only to prevent tampering with kernel information
Masks sensitive paths like /proc/keys, /proc/kcore, /sys/firmware by mounting tmpfs over them
Uses device-specific permissions on /dev nodes

This prevents processes from accessing host kernel structures or sensitive hardware information.

The Complete Script

#!/bin/bash
set -e

export PATH="/usr/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin:/bin:/sbin"

# Must be run as root
if [ "$EUID" -ne 0 ]; then
    echo "Please run as root: sudo $0 $*"
    exit 1
fi

BRIDGE="br0"
SUBNET="10.88.0"
CONTAINER_BASE="/opt/containers"
IMAGE="debian:stable-slim"
SCRIPT_PATH=$(realpath "$0")

ensure_bridge() {
    nft insert rule inet firewalld filter_FORWARD iifname "br0" oifname "eth0" accept
    nft insert rule inet firewalld filter_FORWARD iifname "eth0" oifname "br0" accept
    # firewall-cmd --permanent --direct --add-rule ipv4 filter FORWARD 0 -i "$BRIDGE" -o eth0 -j ACCEPT
    # firewall-cmd --permanent --direct --add-rule ipv4 filter FORWARD 0 -i eth0 -o "$BRIDGE" -j ACCEPT
    # firewall-cmd --reload

    if ! ip link show "$BRIDGE" &>/dev/null; then
        echo "Bridge $BRIDGE not found, creating..."
        ip link add "$BRIDGE" type bridge
        ip addr add "${SUBNET}.1/24" dev "$BRIDGE"
        ip link set "$BRIDGE" up
        sysctl -w net.ipv4.ip_forward=1 >/dev/null
        firewall-cmd --add-masquerade 2>/dev/null || true
        echo "Bridge $BRIDGE created"
    else
        echo "Bridge $BRIDGE already exists"
    fi
}

container_create() {
    ensure_bridge

    # 1. generate ID
    ID=$(head -c4 /dev/urandom | xxd -p)
    echo "Creating container: $ID"

    # 2. create directories
    CONTAINER_DIR="${CONTAINER_BASE}/${ID}"
    ROOTFS_DIR="${CONTAINER_DIR}/rootfs"
    mkdir -p "$ROOTFS_DIR"

    # 3. get rootfs from image
    echo "Pulling rootfs from ${IMAGE}..."
    crane export "$IMAGE" | tar -xC "$ROOTFS_DIR"

    # 4. create hostname/hosts/resolv.conf
    echo "container-${ID}" > "$CONTAINER_DIR/hostname"
    cat <<EOF > "$CONTAINER_DIR/hosts"
127.0.0.1   localhost container-${ID}
::1         localhost ip6-localhost ip6-loopback
EOF
    cp /etc/resolv.conf "$CONTAINER_DIR/resolv.conf"

    # 5. create named netns
    ip netns add "ctr-${ID}"

    # 6. create veth pair
    ip link add "veth-${ID}" type veth peer name "vctr-${ID}"

    # 7. attach host end to bridge
    ip link set "veth-${ID}" master "$BRIDGE"
    ip link set "veth-${ID}" up

    # 8. move container end into netns
    ip link set "vctr-${ID}" netns "ctr-${ID}"

    # 9. configure container-side networking
    ip netns exec "ctr-${ID}" ip link set lo up
    ip netns exec "ctr-${ID}" ip addr add "${SUBNET}.2/24" dev "vctr-${ID}"
    ip netns exec "ctr-${ID}" ip link set "vctr-${ID}" up
    ip netns exec "ctr-${ID}" ip route add default via "${SUBNET}.1"

    # 10. save container state for cleanup
    echo "$ID" > "$CONTAINER_DIR/id"
    echo "veth-${ID}" > "$CONTAINER_DIR/veth"

    echo "Container $ID ready"
    echo "  Network namespace: ctr-${ID}"
    echo "  IP: ${SUBNET}.2"
    echo "  Rootfs: $ROOTFS_DIR"

    # 11. launch container inside namespaces
    nsenter --net=/var/run/netns/ctr-${ID} \
    unshare --mount --pid --fork --uts --cgroup \
        env PATH="$PATH" \
        "$SCRIPT_PATH" --inner "$ID"
}

container_inner() {
    export PATH="/usr/bin:/usr/sbin:/usr/local/bin:/usr/local/sbin:/bin:/sbin"

    local ID=$1
    local CONTAINER_DIR="${CONTAINER_BASE}/${ID}"
    local ROOTFS_DIR="${CONTAINER_DIR}/rootfs"

    # isolate mount namespace
    mount --make-rslave /
    mount --rbind "$ROOTFS_DIR" "$ROOTFS_DIR"
    mount --make-private "$ROOTFS_DIR"

    # mount pseudo filesystems
    mkdir -p "$ROOTFS_DIR/proc"
    mount -t proc proc "$ROOTFS_DIR/proc"

    mkdir -p "$ROOTFS_DIR/dev"
    mount -t tmpfs -o nosuid,strictatime,mode=0755 tmpfs "$ROOTFS_DIR/dev"

    # minimal device nodes
    mknod -m 666 "$ROOTFS_DIR/dev/null"    c 1 3
    mknod -m 666 "$ROOTFS_DIR/dev/zero"    c 1 5
    mknod -m 666 "$ROOTFS_DIR/dev/random"  c 1 8
    mknod -m 666 "$ROOTFS_DIR/dev/full"    c 1 7
    mknod -m 666 "$ROOTFS_DIR/dev/urandom" c 1 9
    mknod -m 666 "$ROOTFS_DIR/dev/tty"     c 5 0
    ln -sf /proc/kcore     "$ROOTFS_DIR/dev/core"
    ln -sf /proc/self/fd   "$ROOTFS_DIR/dev/fd"
    ln -sf /proc/self/fd/0 "$ROOTFS_DIR/dev/stdin"
    ln -sf /proc/self/fd/1 "$ROOTFS_DIR/dev/stdout"
    ln -sf /proc/self/fd/2 "$ROOTFS_DIR/dev/stderr"

    chown root:root "$ROOTFS_DIR/dev/"{null,zero,full,random,urandom,tty}

    mkdir -p "$ROOTFS_DIR/dev/pts"
    mount -t devpts -o newinstance,ptmxmode=0666,mode=0620 devpts $ROOTFS_DIR/dev/pts
    ln -sf /dev/pts/ptmx "$ROOTFS_DIR/dev/ptmx"

    mkdir -p "$ROOTFS_DIR/dev/mqueue"
    mount -t mqueue -o nosuid,nodev,noexec mqueue $ROOTFS_DIR/dev/mqueue

    mkdir -p "$ROOTFS_DIR/dev/shm"
    mount -t tmpfs -o nosuid,nodev,noexec,mode=1777,size=67108864 tmpfs $ROOTFS_DIR/dev/shm

    mkdir -p "$ROOTFS_DIR/sys"
    mount -t sysfs -o ro,nosuid,nodev,noexec sysfs "$ROOTFS_DIR/sys"

    mkdir -p "$ROOTFS_DIR/sys/fs/cgroup"
    mount -t cgroup2 -o ro,nosuid,nodev,noexec cgroup2 "$ROOTFS_DIR/sys/fs/cgroup"

    # bind identity files
    for p in hostname hosts resolv.conf; do
        touch "$ROOTFS_DIR/etc/$p"
        mount --bind "$CONTAINER_DIR/$p" "$ROOTFS_DIR/etc/$p"
    done

    # pivot into rootfs
    cd "$ROOTFS_DIR"
    mkdir -p .oldroot
    pivot_root . .oldroot

    # clean up old root
    mount --make-rslave /
    umount -l .oldroot
    rmdir .oldroot

    # set hostname
    hostname "$(cat /etc/hostname)"

    # harden - make proc subdirs read-only
    for d in bus fs irq sys sysrq-trigger; do
        if [ -e "/proc/$d" ]; then
            mount --bind "/proc/$d" "/proc/$d"
            mount -o remount,bind,ro "/proc/$d"
        fi
    done

    # harden - mask sensitive paths
    for p in \
        /proc/asound \
        /proc/interrupts \
        /proc/kcore \
        /proc/keys \
        /proc/latency_stats \
        /proc/timer_list \
        /proc/timer_stats \
        /proc/sched_debug \
        /proc/acpi \
        /proc/scsi \
        /sys/firmware; do
        if [ -d "$p" ]; then
            mount -t tmpfs -o ro tmpfs "$p"
        elif [ -f "$p" ]; then
            mount --bind /dev/null "$p"
        fi
    done

    exec /bin/bash
}

container_destroy() {
    local ID=$1
    local CONTAINER_DIR="${CONTAINER_BASE}/${ID}"

    echo "Destroying container: $ID"

    # delete veth (deleting one end removes both)
    ip link del "veth-${ID}" 2>/dev/null || true

    # delete netns
    ip netns del "ctr-${ID}" 2>/dev/null || true

    # remove directories
    rm -rf "$CONTAINER_DIR"

    echo "Container $ID destroyed"
}

case "$1" in
    start)   container_create ;;
    stop)    container_destroy "$2" ;;
    --inner) container_inner "$2" ;;
    *)       echo "Usage: $0 start|stop <id>" ;;
esac

Save this script as container.sh and make it executable:

chmod +x container.sh

Start a container:

sudo ./container.sh start

When you're done, stop it:

sudo ./container.sh stop <container-id>

What You've Built

You've created a fully functional container runtime from scratch:

Root filesystem from container images (using crane export)
Unique container identification
Container identity configuration (hostname, hosts, resolv.conf)
Network isolation with named network namespaces
Network connectivity via bridge and veth pairs
Complete isolation with all required namespaces
Proper pseudo filesystems and device nodes
Security hardening (read-only proc, masked sensitive paths)
Resource cleanup on container stop
Persistent bridge configuration

Key Concepts

Namespaces isolate resources: Each namespace type restricts access to a specific system resource
Rootfs provides the filesystem: Container images are just filesystems
Veth pairs connect namespaces: Virtual ethernet pairs bridge container and host networks
Named network namespaces allow configuring networking before entering the namespace
Pivot root safely switches the root filesystem without chroot limitations
Pseudo filesystems provide essential kernel interfaces inside the container
Security hardening protects the host kernel from container processes
