Bridge vs. Switch

Many thanks to Victor Nagoryanskii for taking the author on a virtual tour to a data center!

The difference between these two networking devices has been an unsolvable mystery for me for quite some time. For a while, I used to use the words "bridge" and "switch" interchangeably. But after getting more into networking, I started noticing that some people tend to see them as rather different devices... So, maybe I've been totally wrong? Maybe saying "bridge aka switch" is way too inaccurate?

Let's try to figure it out!

Switch == Bridge

There is a nice book called "Understanding Linux Network Internals". It has a whole chapter on bridges. Among other things, it states that a bridge is the same as a switch.

Quote from the "Understanding Linux Network Internals" book

My take from this book was that:

• By saying "bridge" we refer to a logical function of a device.
• By saying "switch" we refer to the actual physical device performing that function.

So, what is this function?

Bridges transparently combine network nodes into Layer 2 segments creating Layer 2 broadcast domains. Nodes of a single segment can exchange data link layer frames with each other using either unicast (MAC) or broadcast addresses.

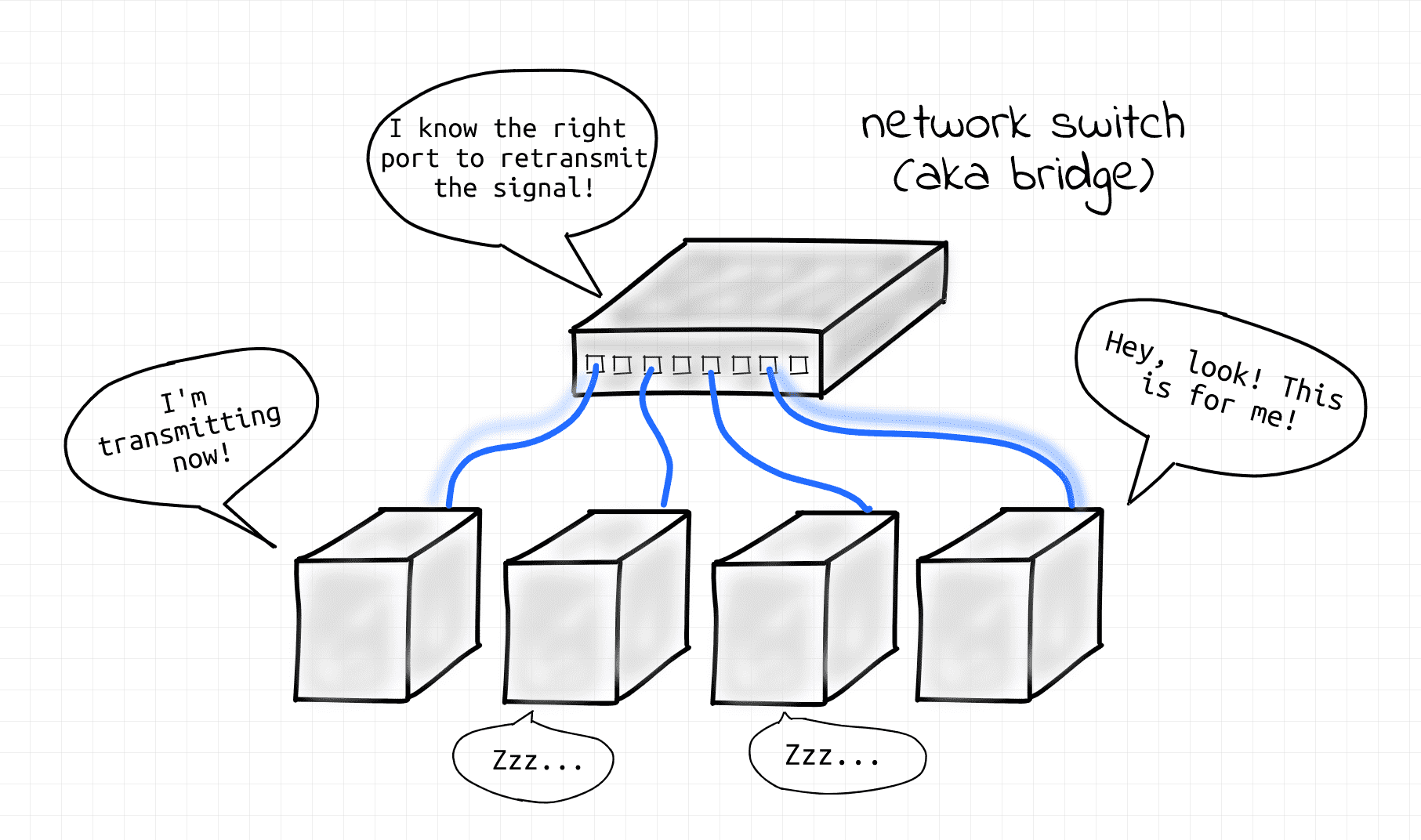

Bridge network function.

The fact that bridges perform their function transparently means that from the network participants' standpoint, bridges don't exist. Nodes just send frames to each other. The task of the bridge is to learn which node is reachable from which port and forward the Ethernet frames accordingly.

Switch != Bridge

This finding reassured me for a moment, so I felt brave enough to use the "bridge aka switch" statement in the previous lesson on networking fundamentals. I was very lucky the day I published it - the write-up got quite some attention and feedback. And some of it was about my bridge-switch assumption. Apparently, not everyone was happy about it…

Fortunately, a practicing Network Engineer reached out to me and kindly offered a virtual excursion into a data center. That sounded like an awesome opportunity for me to take a look at the true enterprise-grade network and ask some questions to a real networking guru.

Below are my learnings from that trip.

Historical discourse

There is a long history behind the evolution of networking devices. Supposedly, bridges started as two-port devices combining two L2 (or L1?) network segments into a bigger L2 segment. Hence, the name bridge. Then they turned into multi-port devices, but the name stayed. Regardless of the number of the ports such devices were unnoticeable from the network participant standpoint - bridges always perform their function transparently.

Then, the hardware evolved even further and nowadays, it's hard to find pure hardware bridges, especially in a serious context of use (see the next section). However, the need for the logical bridge function stayed unchanged. In the real world, this function is often performed by switches. In the virtual world - by Linux bridge virtual device.

Switch >= Bridge

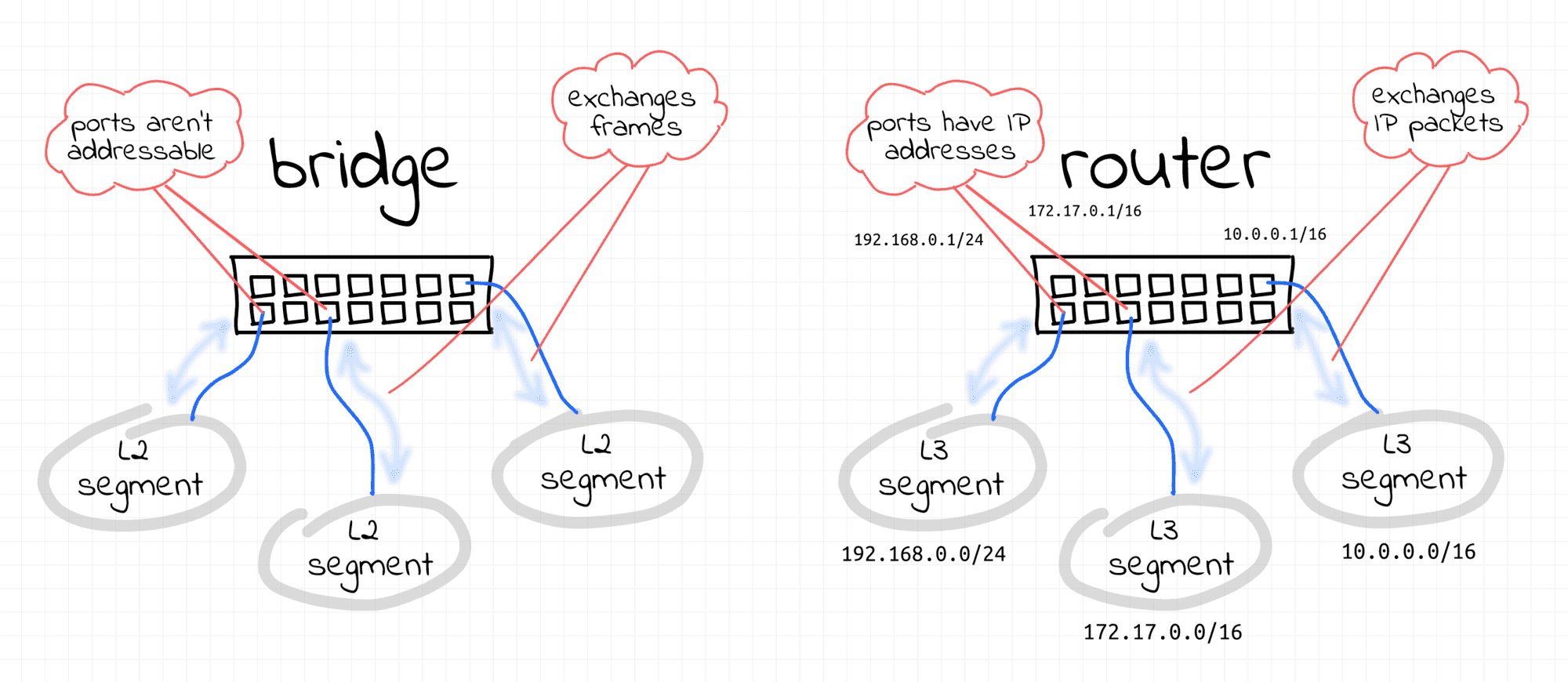

What helped me to understand the difference is that I started thinking in terms of the following logical networking devices:

• Bridge - transparent Layer 2 device performing frame forwarding on a single L2 segment.
• Router - non-transparent Layer 3 device performing IP packet forwarding between multiple L3 segments.

So, how a reasonably big LAN can be organized? Theoretically, it's possible to interconnect multiple bridges to extend a broadcast domain up to hundreds (or even thousands) of nodes.

But, it turned out that giant broadcast domains are pretty hard to manage. Apparently, in the real world, huge domains often lead to huge outages.

Thus, instead of having an immense data-center-wide broadcast domain, it's better to have smaller isolated L2 segments that can talk to each other through... L3 routers!

Getting, back to switches...

Modern network switches used in data centers are pretty advanced devices. They can work as bridges. Or, as routers. Or... some of their ports can work in a bridge mode, and some others - in a router mode. I'd speculate a bit and say that it's likely we're talking here about multilayer switches.

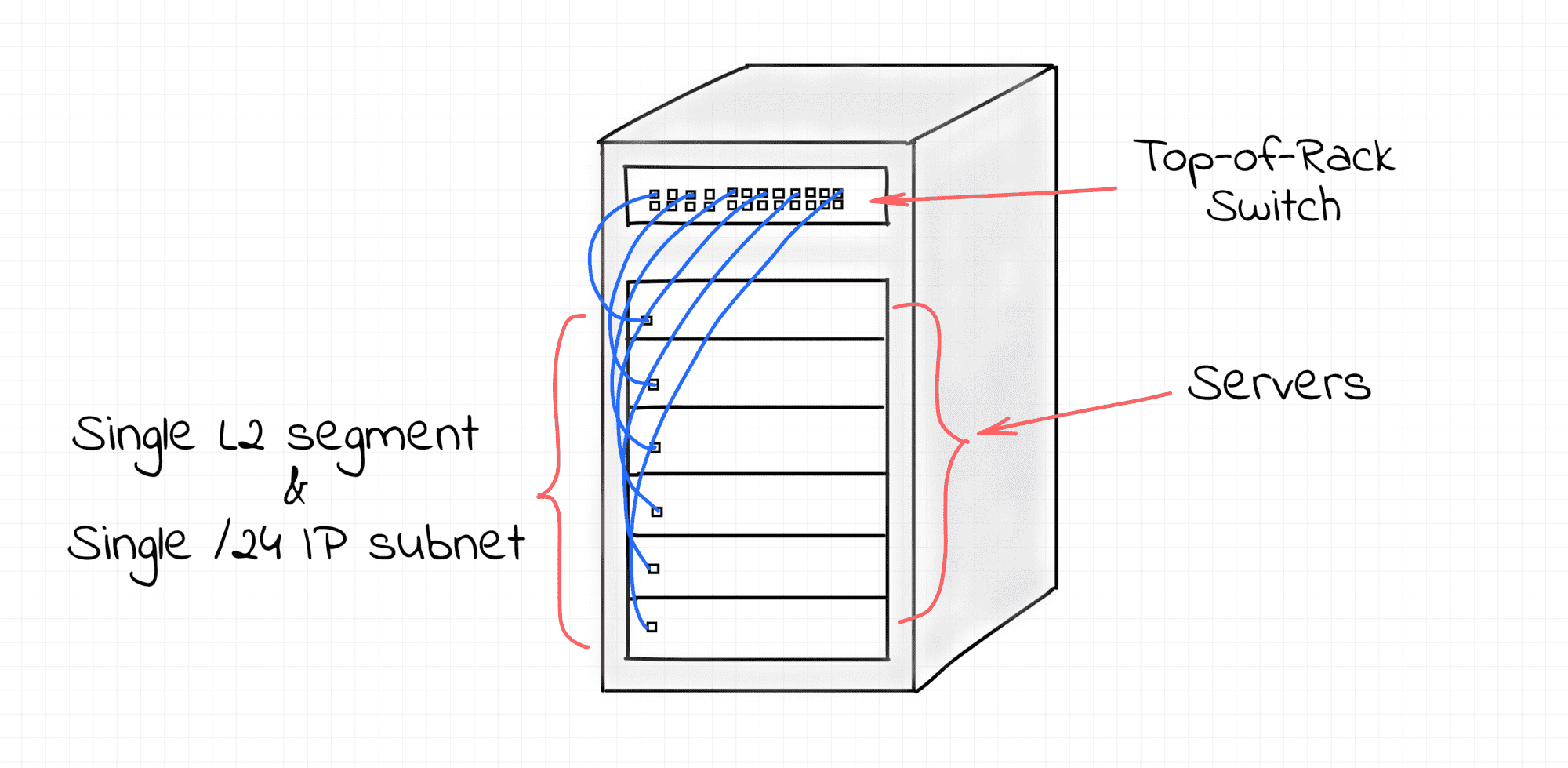

In a setup I was introduced to, all servers on a single rack belong to the same /24 IP subnet and are connected to a single switch.

Such a switch is called top-of-rack (TOR).

For these servers, the TOR switch behaves as a canonical transparent multi-port bridge. I.e. as a pure Layer 2 device. And a rack forms equally sized L2 and L3 segments.

However, the L3 segments formed by individual racks need to be joined into internetwork. For that, one of the remaining ports of the TOR switch is configured to work in L3 mode. Unlike the L2 ports, it means that this port is an addressable network node with an IP address. It's then connected to a higher-layer switch.

Simplified hierarchical internetworking model.

These higher-layer switches on the diagram above are called distribution layer switches. In the network I was looking at, switches on this layer work as pure L3 routers. Hence, each port of a distribution-layer switch is a full-fledged Layer 3 device with an IP address assigned to it.

TOR-switches can be thought of as compound devices with a bridge (with tens of ports) and a router (with just 2 ports) inside. Distribution layer switches can be thought of as multi-port L3 routers. Like truly multi-port. 48- or 64-port routers! The router on a TOR-switch knows only two routes - to the rack's subnet and the default one, pointing to its distribution layer switch. And every distribution layer switch knows a lot of routes. Every rack connected to it has its own /24 IP subnet and this switch works as a border router for tens such subnets.

However, physically, there is no difference between the first and the second types of switches! They all look the same, but just configured differently.

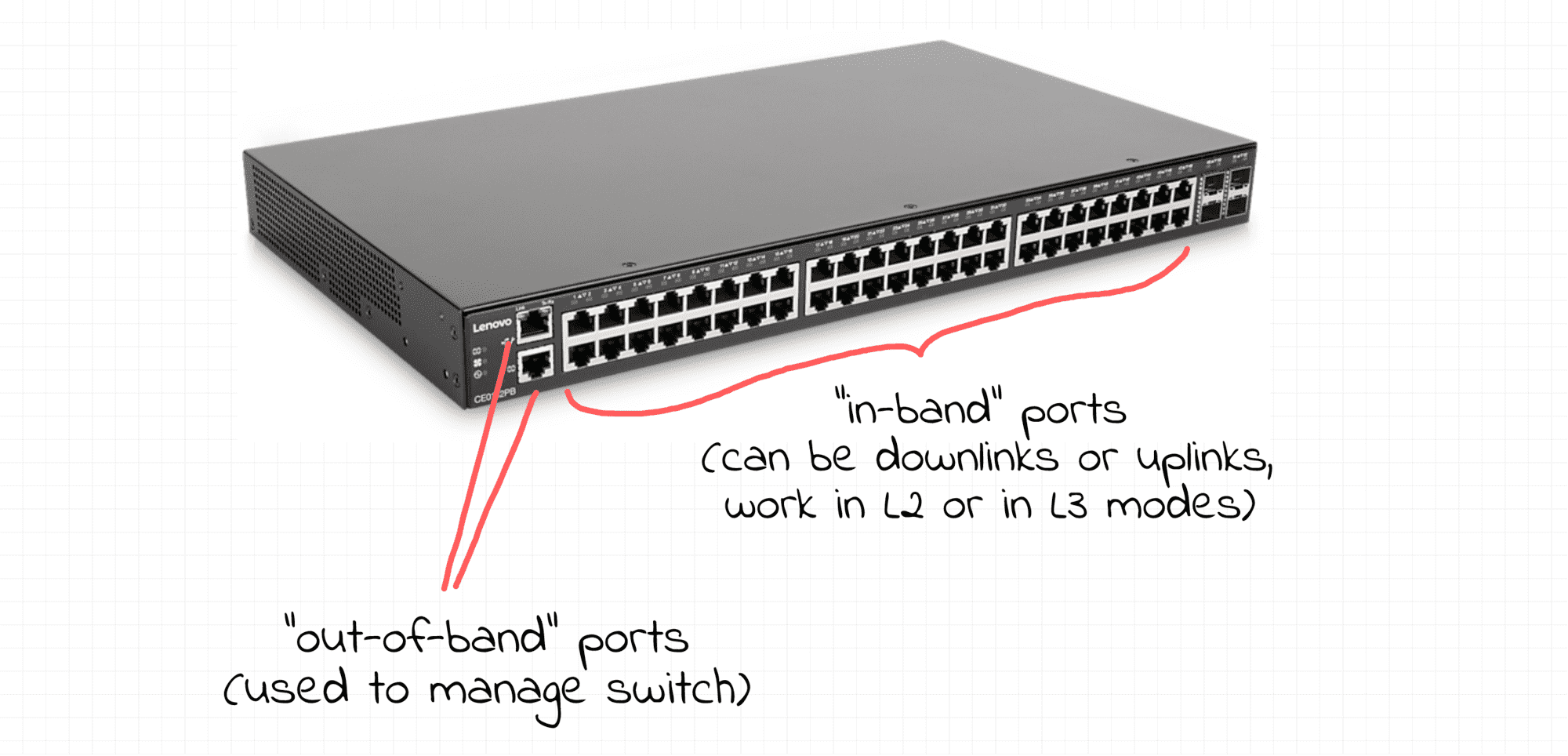

In addition to these 48 (or 64) ports, switches have one or two out-of-band ports.

Regardless of the mode of other ports, the out-of-band ports always work in L3 mode. One can log in on a switch using an IP address of an out-of-band port. This is needed to manage switches because configuring switches through the normal ports would be simply dangerous. Imagine, you messed up with some commands and blocked yourself out of the switch?

Curious what would it look like when you ssh to a switch? Surprise, surprise! It's Linux! Or FreeBSD. Or a proprietary Unix-like OS. I.e. one can configure a switch via a traditional ssh session using widely-known iproute2 tools such as ip and/or bridge.

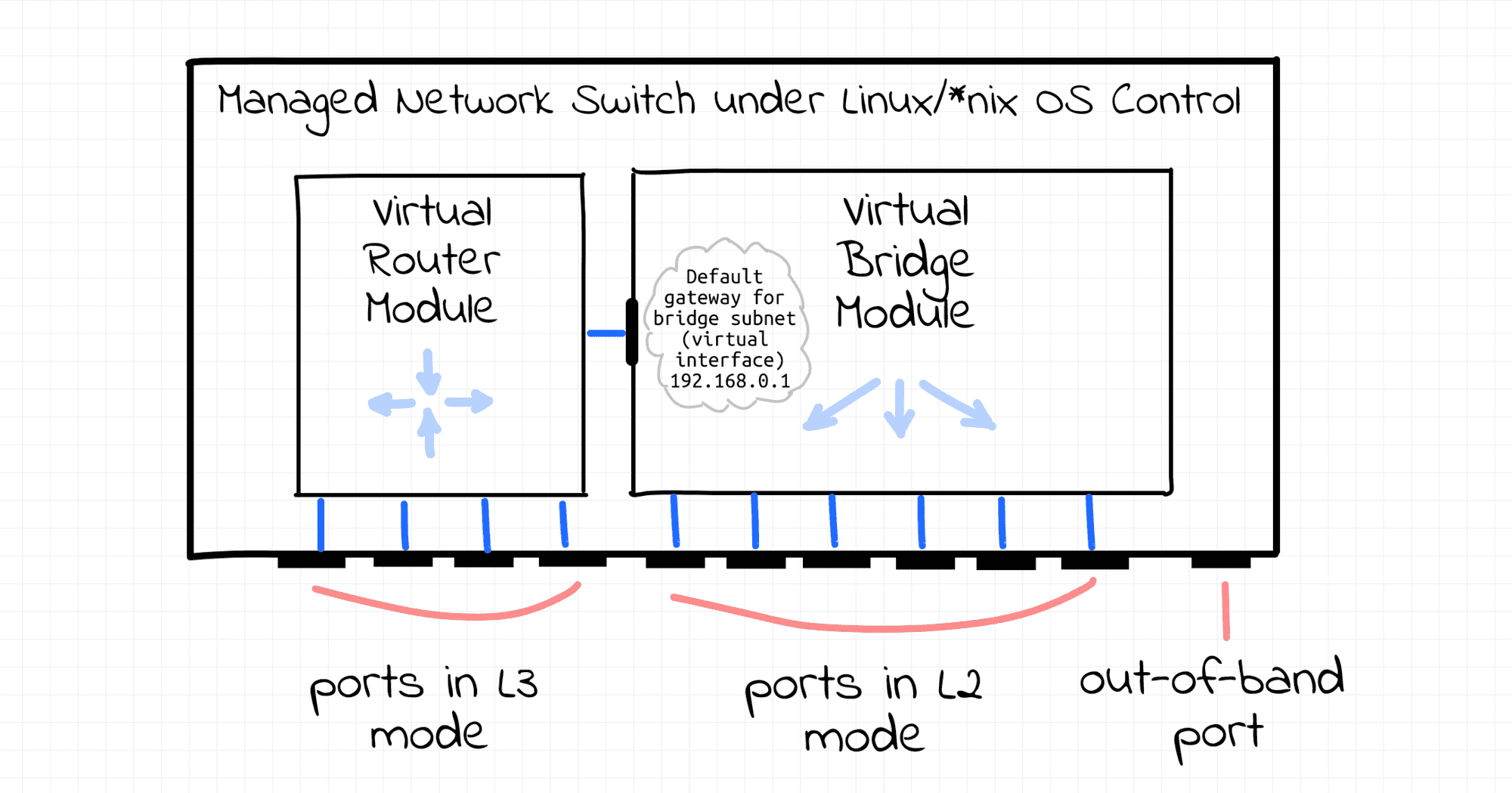

From the management standpoint, every port on a switch looks like a traditional network device. One can enslave some ports to a virtual Linux bridge, assign some other ports IP addresses, configure packet forwarding between ports, set a route table, etc. So, you can think of a switch as of a Linux server with many-many network ports. And it's totally up to you how to configure them. All the traditional Linux capabilities are at your disposal. But of course, from the hardware standpoint, switches are highly-optimized packet processing devices.

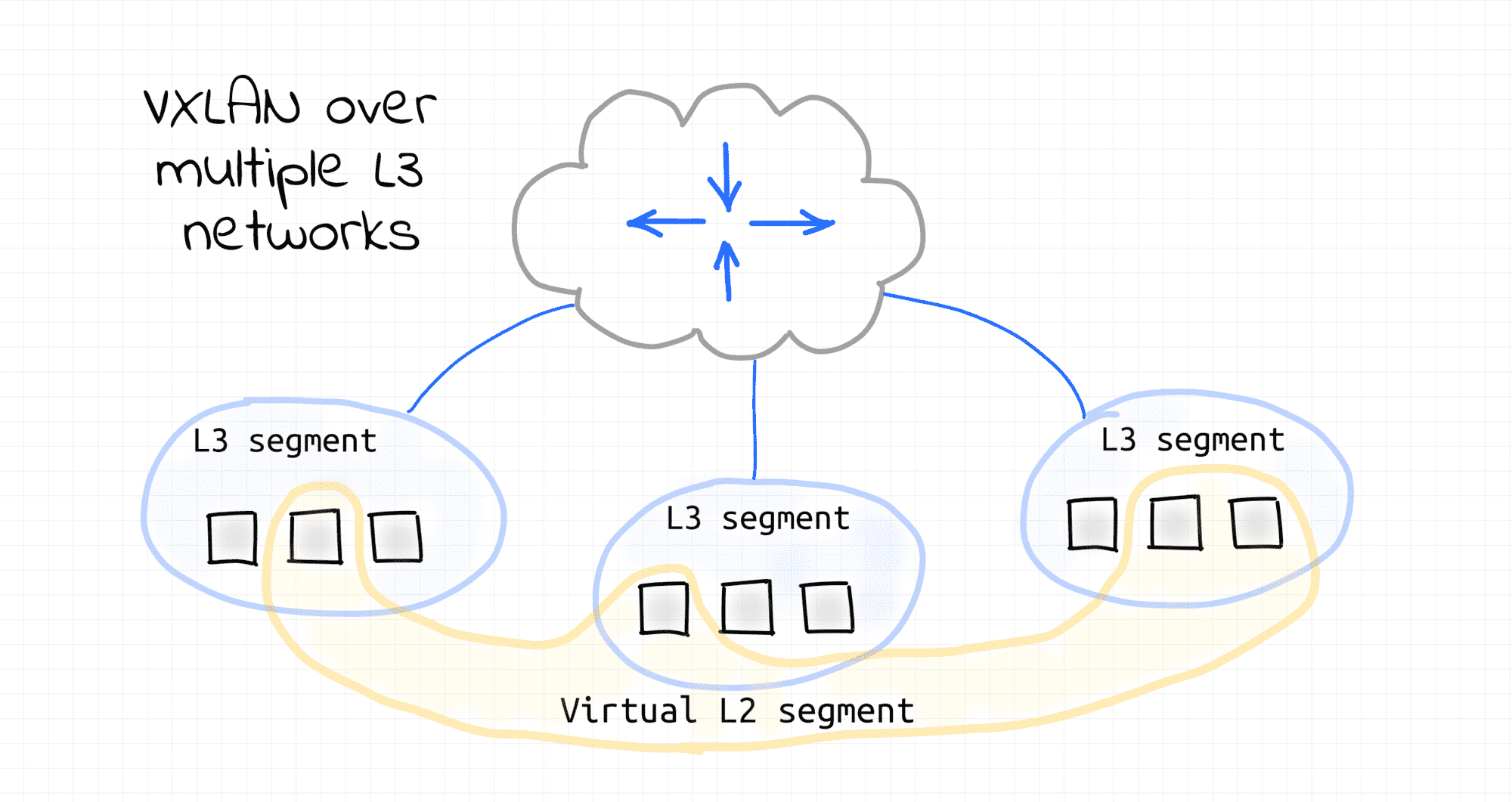

So, what's up with broadcast domains? Can we have a broadcast domain spanning multiple racks? Sure! VXLAN to the rescue! Up until this point, I was describing a physical network setup of a data center. But one can configure any sort of an overlay network on top of it making it tailored for the end-users use cases.

All right, enough ranting. Let's get to the practical part!
