Reach a Whole VPC Through an SSH SOCKS Proxy

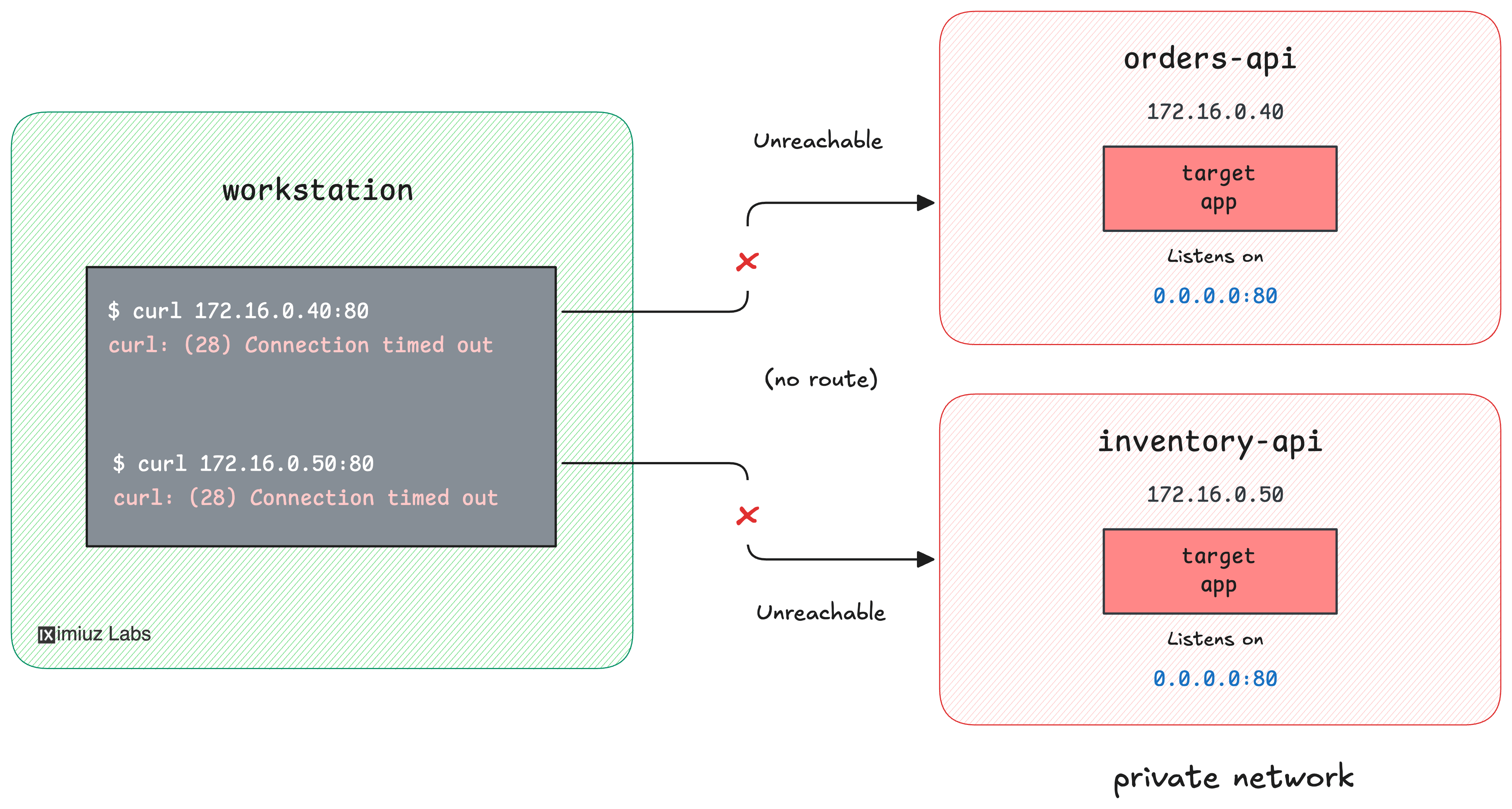

You're an SRE at Acme. A handful of internal microservices run inside a private VPC - among them the orders-api (172.16.0.40:80) and the inventory-api (172.16.0.50:80). None of them has a public address - they can be reached only from machines that are inside the VPC.

You're debugging a production incident and need to poke at several of these services from your workstation using your favorite local tools. But your workstation sits on the public network only and has no route into the VPC, so it cannot talk to them directly:

curl --connect-timeout 3 172.16.0.40:80  # orders-api.vpc

curl: (28) Connection timed out after 3001 milliseconds

There is a public-facing bastion (jump host) (bastion, 203.0.113.20) that you can SSH into, and it is connected to the VPC - so it can reach every internal service. You could open a separate ssh -L tunnel for each one, but that means one tunnel per service (and another for every endpoint you decide to inspect next).

Your task: instead, set up a single SSH dynamic local port forwarding session so that a SOCKS proxy on your workstation's localhost:1080 reaches every host inside the VPC through the bastion. Both internal services should be reachable through that one proxy:

Hint: How dynamic local port forwarding works

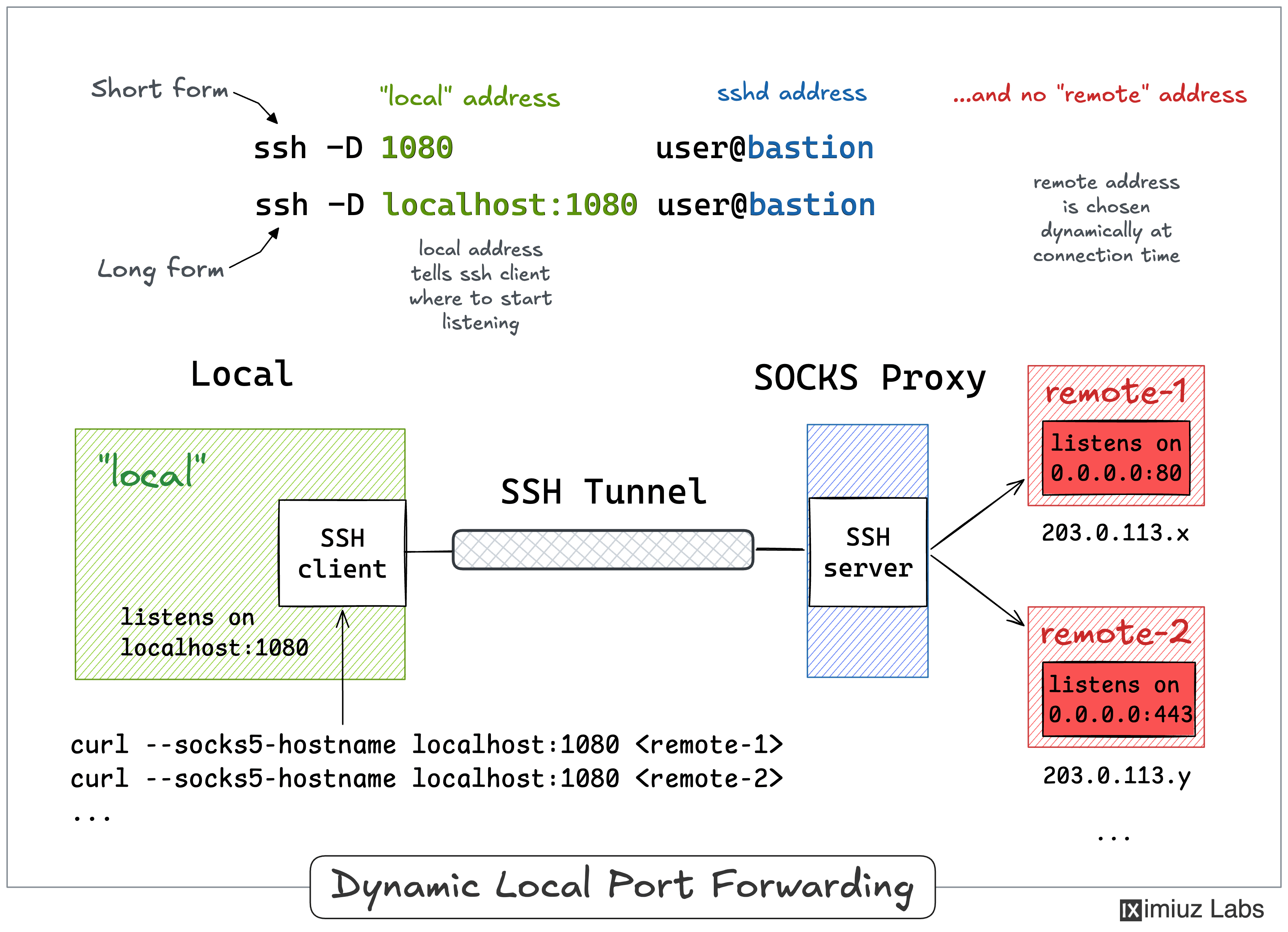

A regular local tunnel (ssh -L local_port:host:port bastion) pins the forwarding to a single destination. Dynamic local forwarding does not specify a destination: with ssh -D and only a single local port, OpenSSH turns your ssh client into a SOCKS proxy. Each connection made through that proxy is sent over your SSH link and connected to whatever address the SOCKS client asks for - resolved and reached from the bastion's side of the network.

Run man ssh and read the -D section, or walk through the example in the SSH Tunnels tutorial.
