Challenge, Medium,  on  Networking, Linux

Reach a Private VPC Service Through an SSH Bastion

Ivan Velichko
by  Ivan Velichko

You're a backend engineer at Acme. The production search backend is an OpenSearch cluster that lives inside a private VPC (opensearch, 172.16.0.40). Its REST API listens on :9200, but the cluster has no public address - it can be reached only from machines that are inside the VPC.

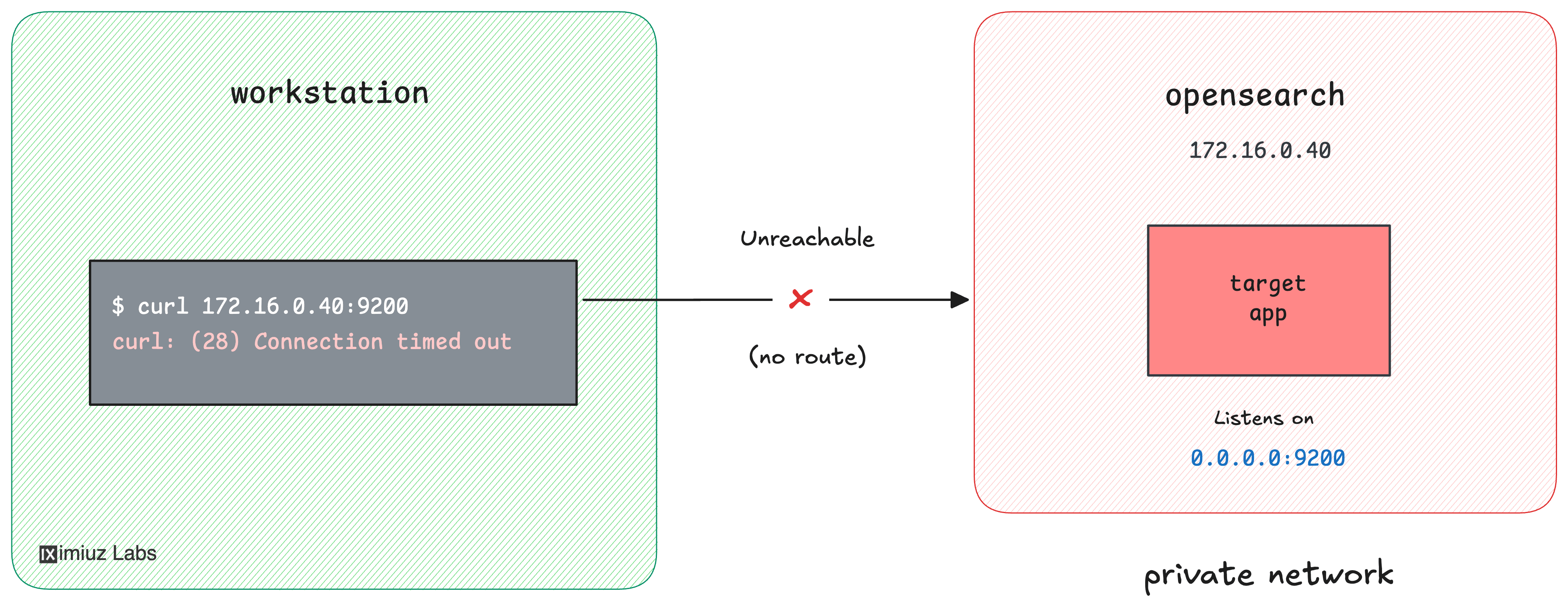

You need to query the cluster's API from your workstation to investigate a production incident, using your favorite local tools. Your laptop sits on the public network only and has no route into the VPC, so it cannot talk to the cluster directly:

curl --connect-timeout 3 172.16.0.40:9200  # opensearch.vpc

curl: (28) Connection timed out after 3001 milliseconds

There is, however, a public-facing bastion (jump host) (bastion, 203.0.113.20) that you can SSH into, and it is connected to the VPC - so it can reach the cluster.

Your task: set up local port forwarding through the bastion so that the cluster's 172.16.0.40:9200 becomes reachable at localhost:9200 on your workstation:

Hint: How local port forwarding works

SSH local port forwarding (ssh -L) opens a listening port on your local machine and forwards everything that arrives there - through the SSH connection - to a destination that the SSH server can reach.

If you're not familiar with this technique, solve this simpler challenge first: Access an Internal Debug Port Through an SSH Tunnel.

Hint: How bastion (jump host) works

The key detail for this challenge: the forwarded destination does not have to reside on the SSH server itself. The bastion accepts your SSH connection and then opens a second hop to whatever host:port you ask for - in this case, the OpenSearch cluster inside the VPC. So the forwarding's target (172.16.0.40) and the SSH server (bastion) are different machines.

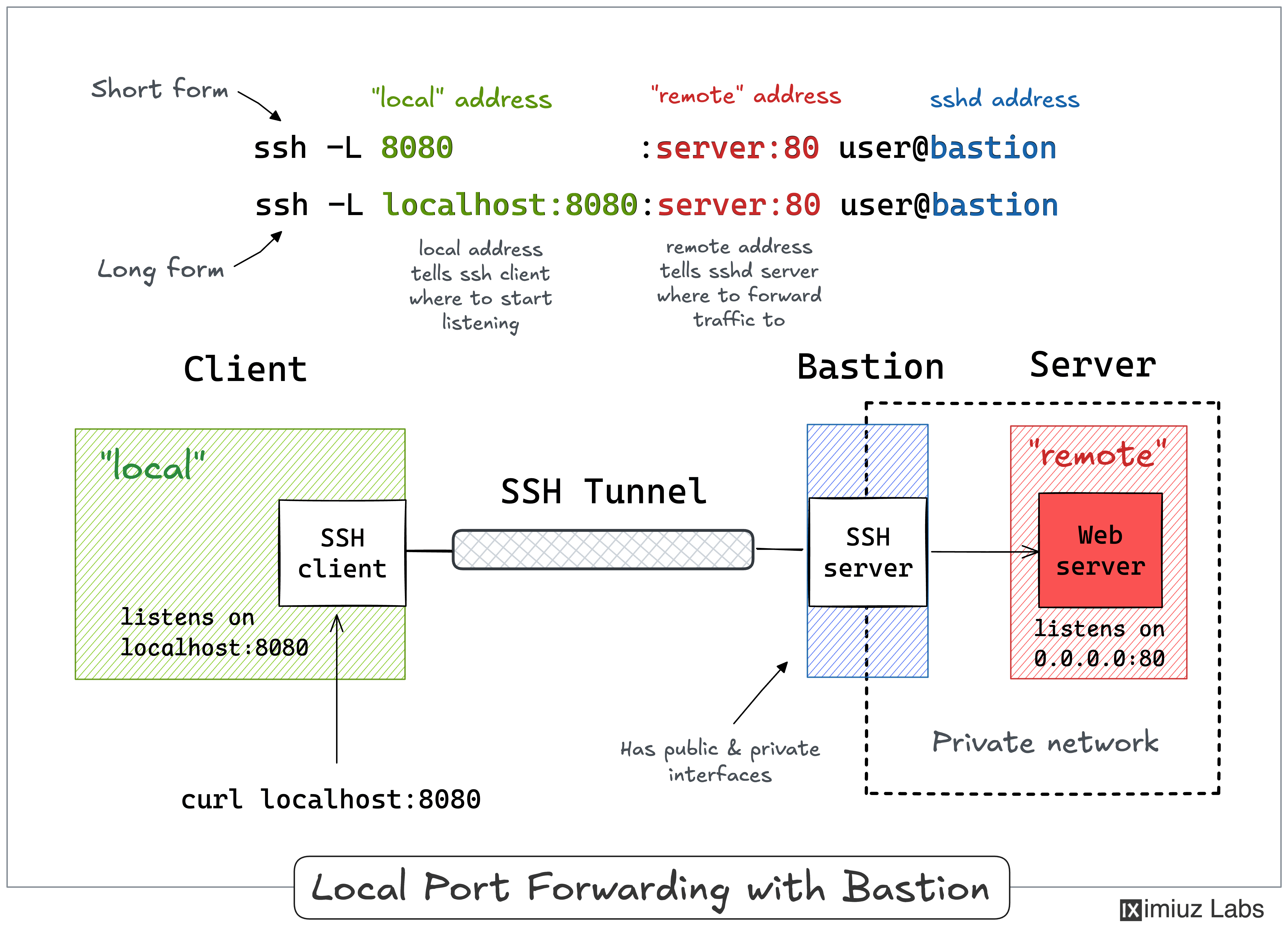

SSH local port forwarding through a bastion host visualized.

Run man ssh and read the -L section, or walk through the example in the SSH Tunnels tutorial.
