Access an Internal Debug Port Through an SSH Tunnel

Ivan Velichko
by  Ivan Velichko

You're on call for Acme. The Acme Checkout API runs on a public-facing VM (app-server, 10.0.0.20) and serves traffic on port 80. The VM is hardened - its firewall only allows inbound :80 (the app) and :22 (SSH).

Alongside the app, the VM keeps an internal debugging port on 127.0.0.1:9000 with goroutine dumps, heap profiles, etc. It is bound to the loopback interface on purpose, so it never gets exposed to the network. You need to query it to investigate an incident and you want to use your favorite tools (e.g., your local coding agent). But you don't want to weaken the server's firewall or rebind the debugging port.

Your task: set up local port forwarding so that the server's 127.0.0.1:9000 debugging port becomes reachable at localhost:8080 on your workstation:

Hint: How local port forwarding works

The debugging port is bound to the server's loopback interface, so it can be reached from within the server but not over the network. SSH local port forwarding (the -L flag of ssh) opens a listening port on your local machine and forwards any traffic that arrives on it - through the SSH connection - to a destination address that the SSH server can reach.

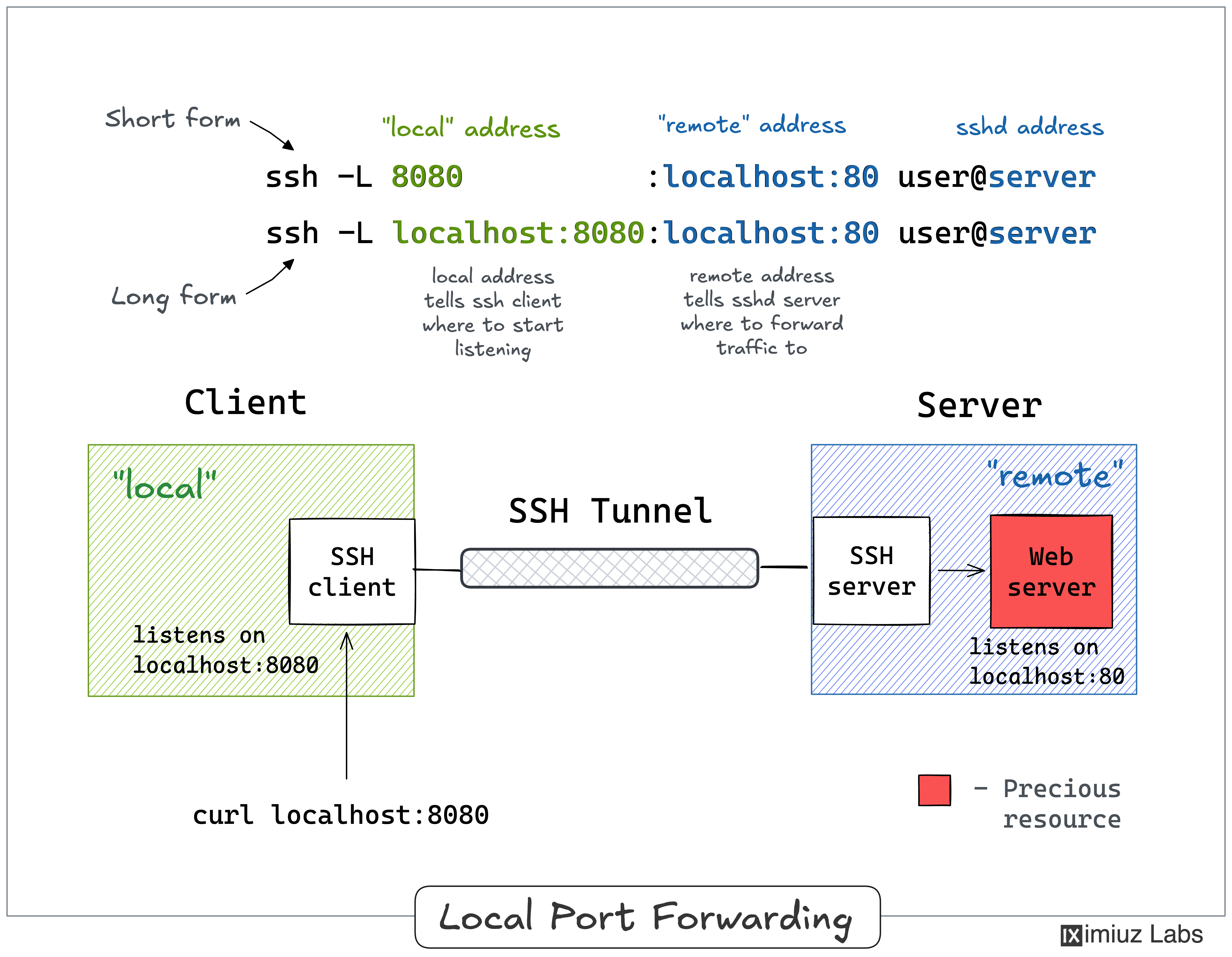

SSH local port forwarding visualized.

Run man ssh and read the -L section, or walk through the example in the SSH Tunnels tutorial.
