CKA Practice: Configure Network Policies To Restrict Traffic Between Pods

In this exercise, you will configure network policies to control traffic flow between two deployments in a Kubernetes cluster. You'll need to ensure specific pods can communicate based on their labels while blocking unauthorized traffic. Have fun!

First, create a namespace called "app":

Now, create two deployments in that namespace.

1. Frontend:
   • Deployment "frontend" with 2 replicas running ghcr.io/iximiuz/labs/nginx:alpine
   • Declares container port 80 and serves HTTP on it
2. Backend:
   • Deployment "backend" with 2 replicas running ghcr.io/lpmi-13/default-go
   • Declares container port 8000 and serves HTTP on it

Now, label the pods:

1. All frontend pods should have: role=frontend
2. All backend pods should have: tier=api
3. Only one backend pod should have the additional label: role=backend

# Get the name of one backend pod
BACKEND_POD=$(kubectl get pods -n app -l app=backend -o jsonpath='{.items[0].metadata.name}')

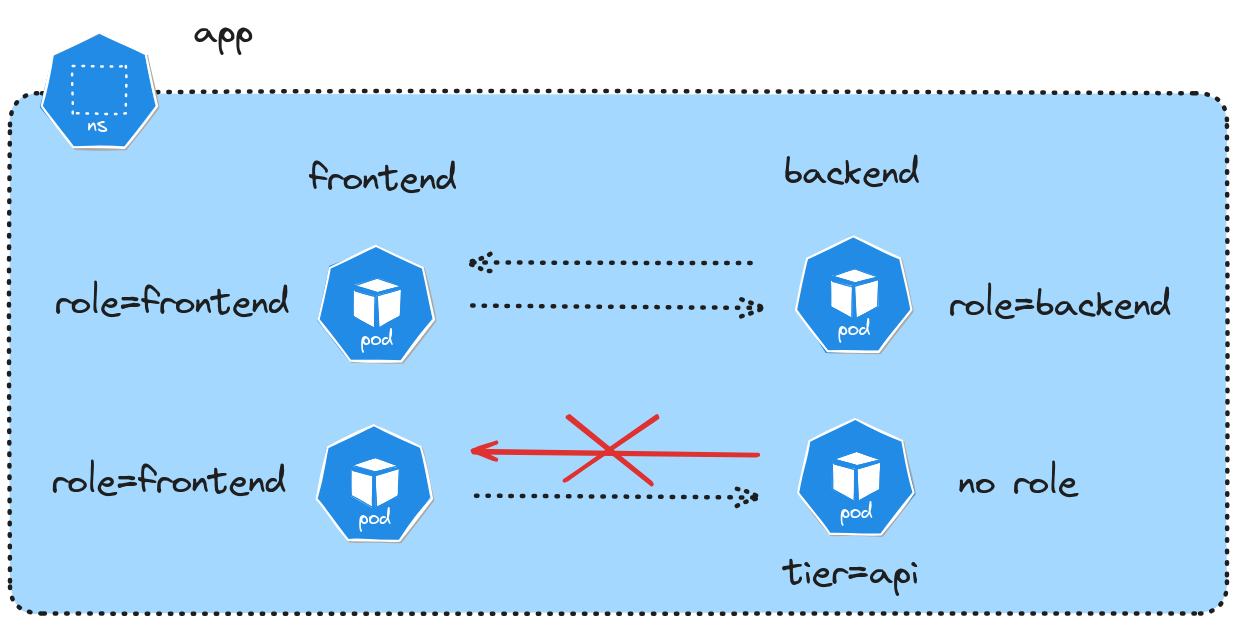

Finally, create network policies to make sure:

1. All frontend pods can send traffic to any backend pod with label tier=api on port 8000
2. Only the backend pod with label role=backend can send traffic to frontend pods with label role=frontend on port 80
3. All other ingress traffic to the frontend and backend pods is denied

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: frontend-to-backend
  namespace: app
spec:
  podSelector:
    matchLabels:
      tier: api
  policyTypes:
  - Ingress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          role: frontend
    ports:
    - port: 8000
      protocol: TCP
